Connectivity & accessories

Connect, power and mount your sensors. Find components for a new installation or match the model already in use.

Find the component for your measurement

Connect the equipment you already use

Keep suitable sensors and instruments in place. Connect their supported outputs to the M4 so the measurements can be viewed, recorded and used by plant software.

IO-Link

Read a supported device through its master

Device cable → IO-Link master → Modbus TCP → M4
Physical connection concept

Illustrative working viewVibration & device statusAvailable values depend on the configured device mapping

A supported IO-Link sensor connects to a compatible, configured master. The M4 reads the supported Modbus mapping from that master.

One implemented combination is a supported Pepperl+Fuchs VIM3 vibration sensor with an ICE11 master. Confirm the exact sensor model, master configuration and available measurements.

Analog instruments

Turn a 4–20 mA signal into a recorded value

Transmitter → Radio input → LoRaWAN → M4
Physical connection concept

Illustrative engineering value500 PaIllustrative input: 12 mA on a 0–1,000 Pa range

A compatible radio input reads the transmitter’s signal. Configure the measurement range and scaling so the received value represents pressure, level or another engineering quantity.

Match the input characteristics, transmitter loop power and supported device payload. A radio input does not automatically power every connected instrument.

Discuss your instrument

Send the instrument model and output type. We’ll identify the required interface and the values it can expose.

Connect existing equipment

Wireless network components

IEPE accelerometer, Wireless Sensor Bridge and external supply

Bring wired sensors into the wireless system

The Wireless Sensor Bridge holds up to three AD modules. Connect an IEPE accelerometer or current clamp to its matching module, then transfer recordings over iQunet radio.

IEPE module Current module

Each module has its own acquisition clock.

Selection & installation notes

PAN Coordinator

The current wireless network coordinator supports iQunet wireless sensors and LoRaWAN sensors. Select the radio version and gateway configuration for the installation.

The original USB Base Station has been superseded. The radio networks and supported device types must match the selected hardware.

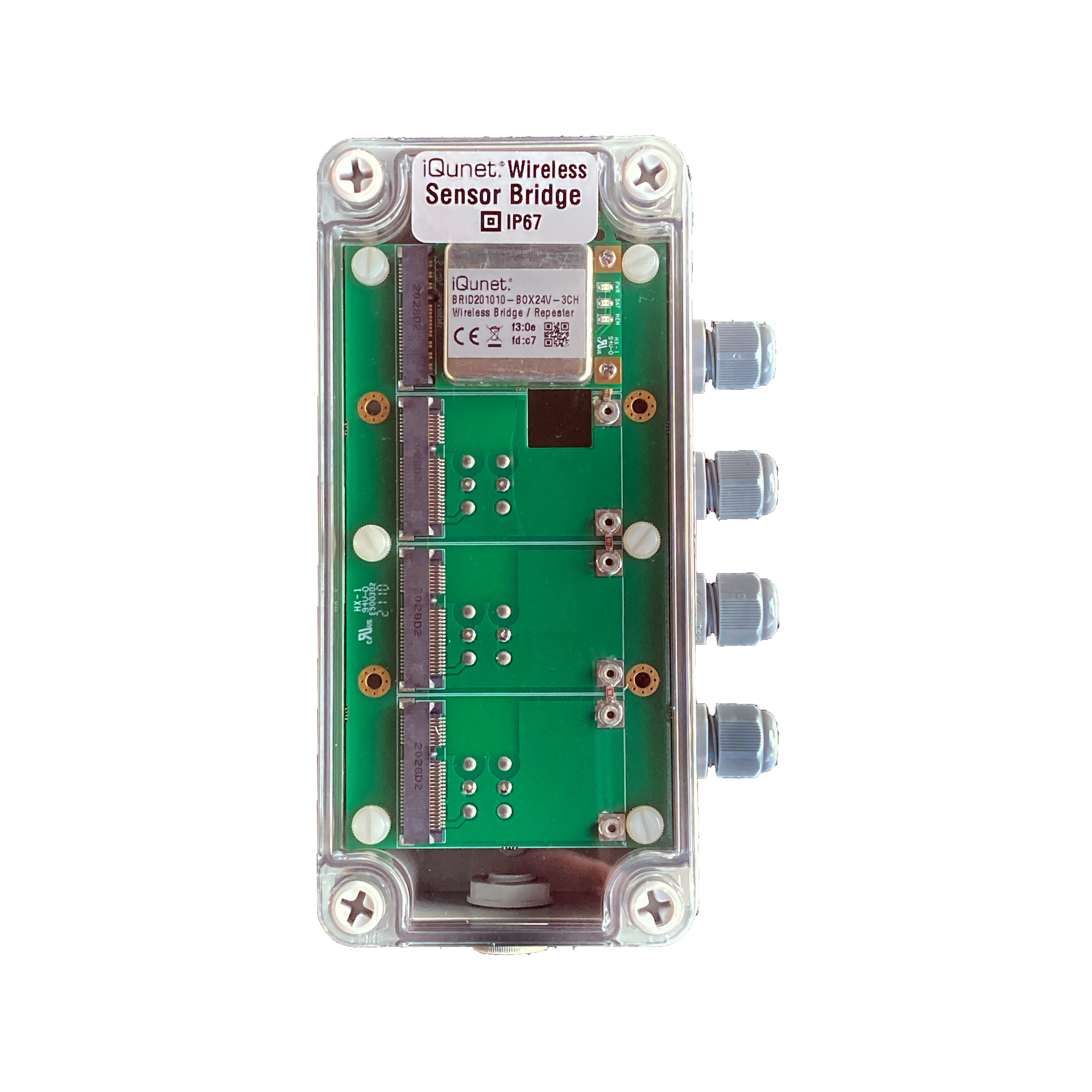

Wireless Sensor Bridge

Digitize up to three analog measurement channels and send them into the iQunet wireless network. Fit the appropriate AD module for each IEPE accelerometer, iQunet current clamp or supported 0–10 V sensor.

Modules and sensors are separate. Each module records independently; inputs can be mixed or left unused. The bridge also repeats iQunet wireless traffic, not LoRaWAN.

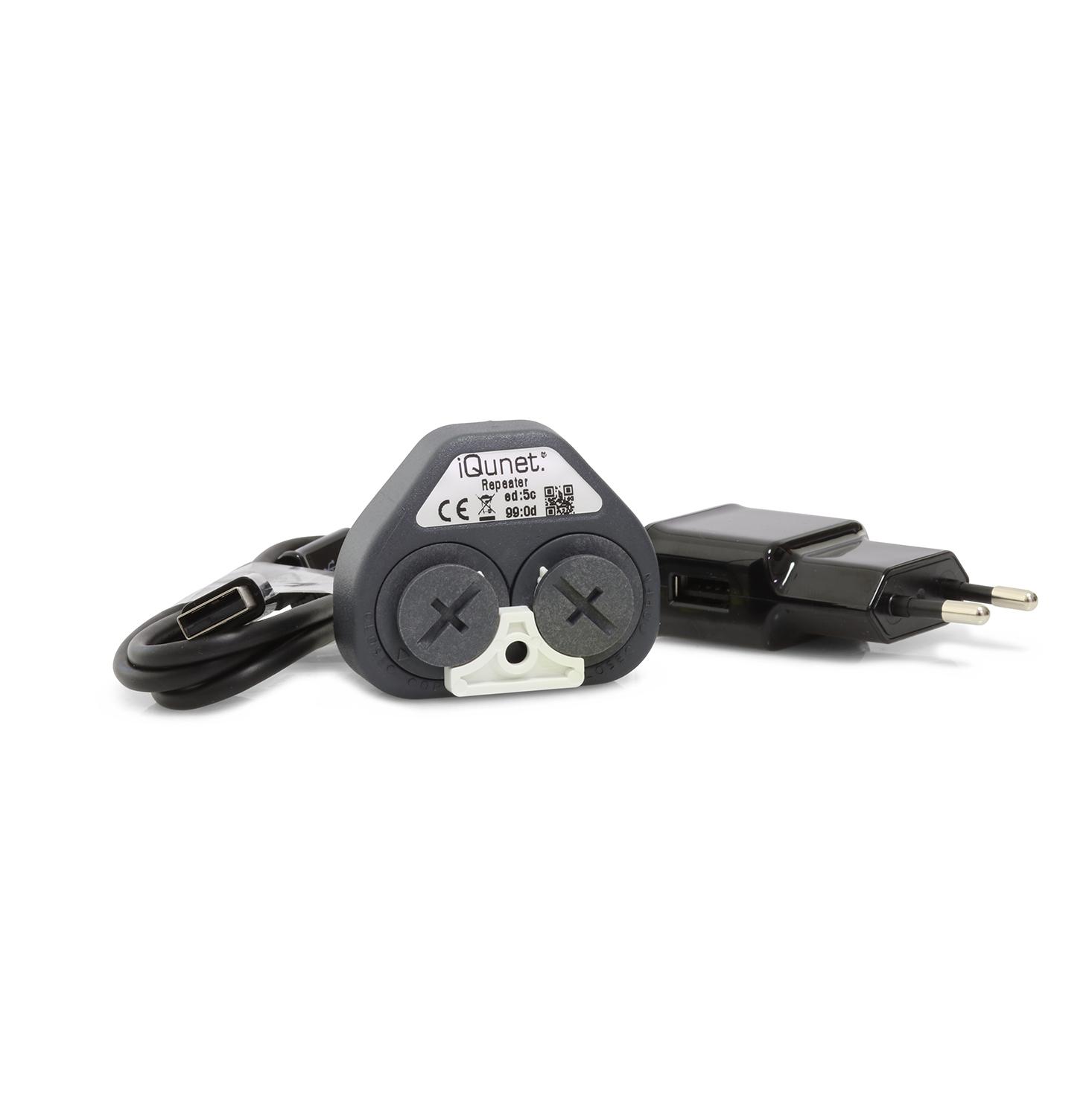

USB-powered repeater

Extend coverage for compatible iQunet wireless sensors. Each repeater connects directly to the network coordinator; the documented network supports one repeater between a sensor and its coordinator.

Micro-USB power, with coin-cell backup for short supply interruptions. Wall or cabinet mounting with clips. Check both radio links at the installation point.

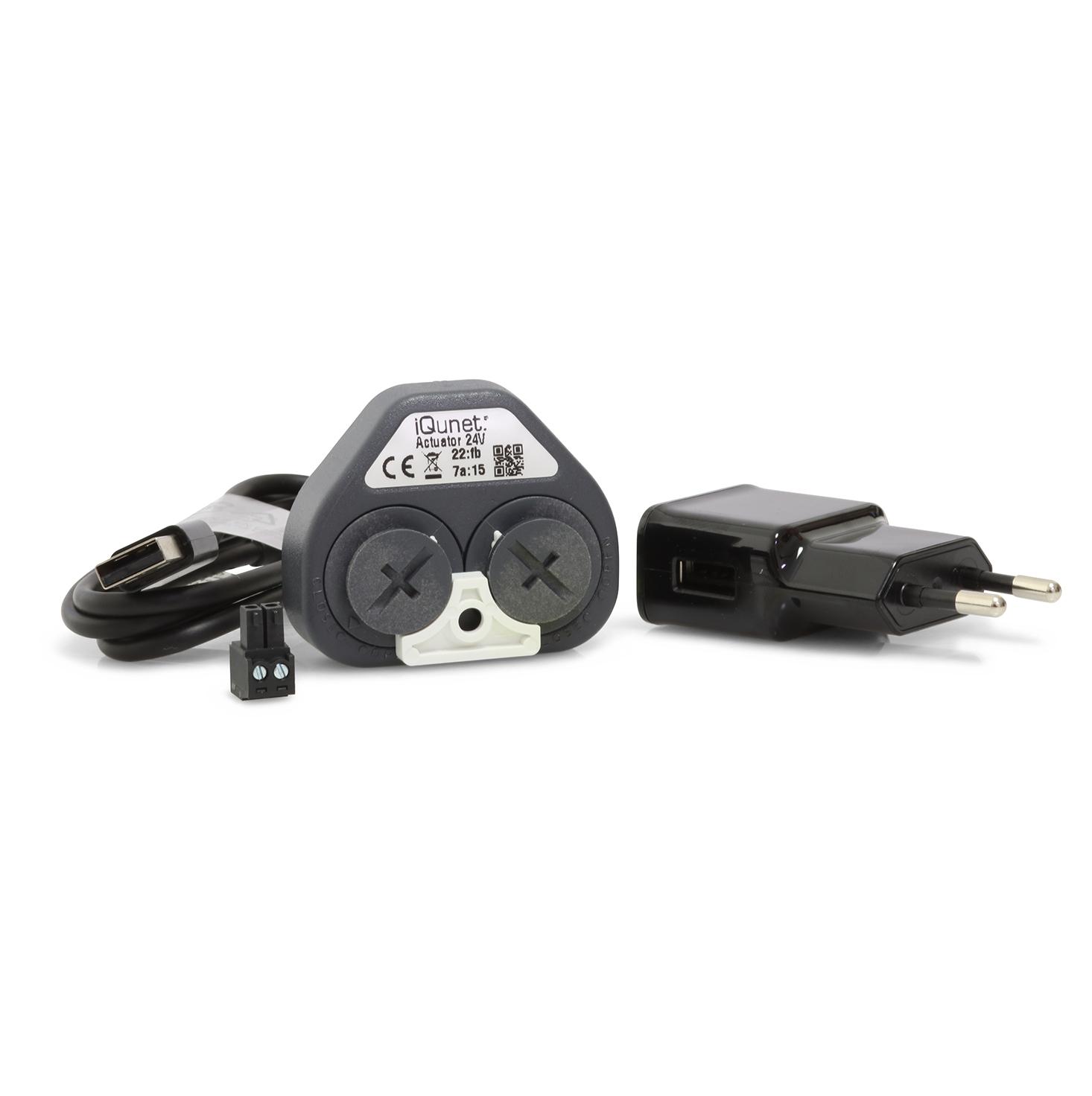

USB-powered actuator

Combines the repeater role with a 24 V switching output that responds to compatible sensor alarm broadcasts. It can provide a signal to a PLC or warning indicator.

Confirm the sensor, output and control-system requirements for the installation. This description does not establish a certified safety function.

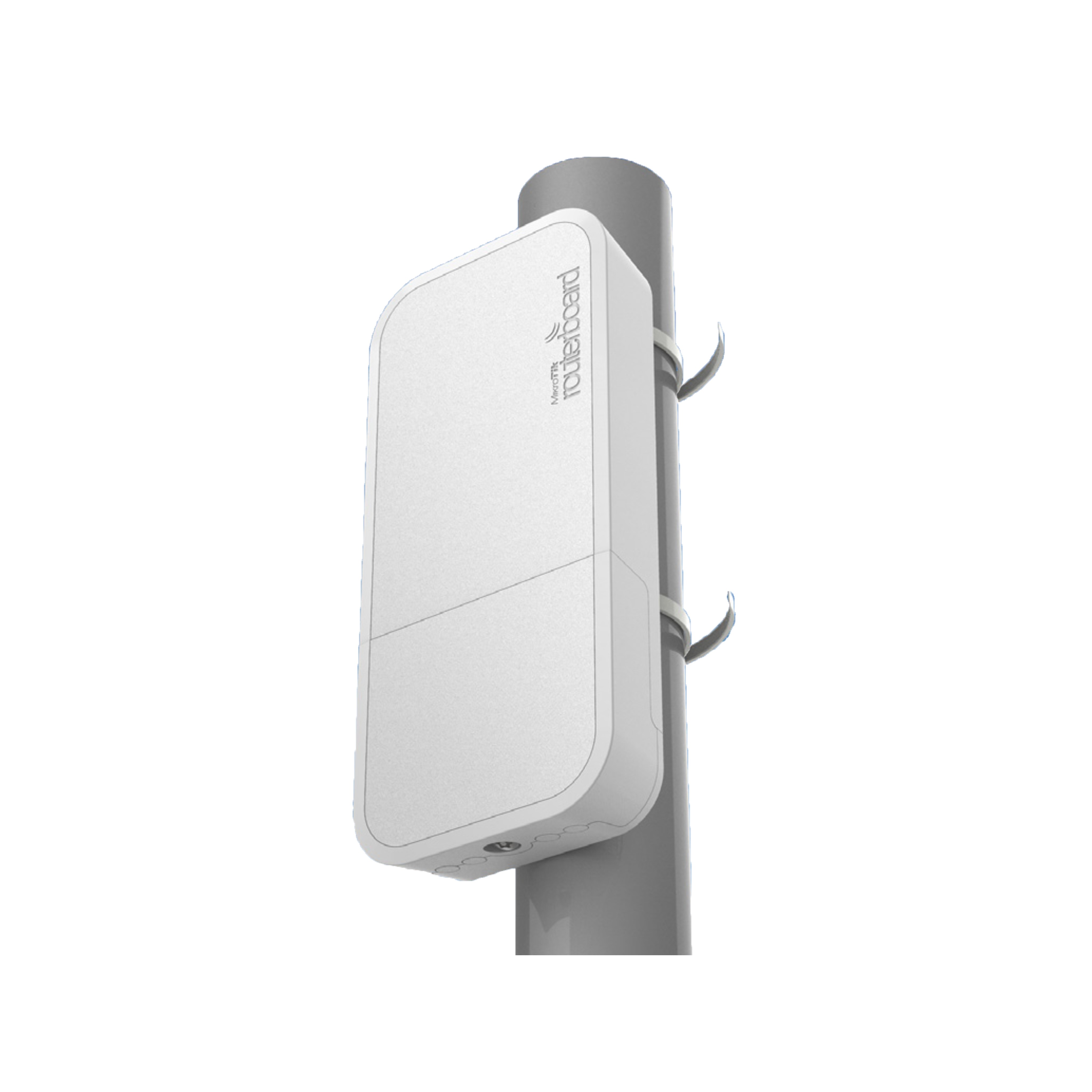

Cellular wireless access point

Provide network access for the iQunet server through a cellular modem when a suitable wired connection is unavailable. The documented model also has Ethernet and local Wi-Fi.

The ACCS633010 model uses passive PoE. Select its power arrangement, SIM and supported LTE bands for the location; carrier coverage and service terms are separate from sensor connectivity.

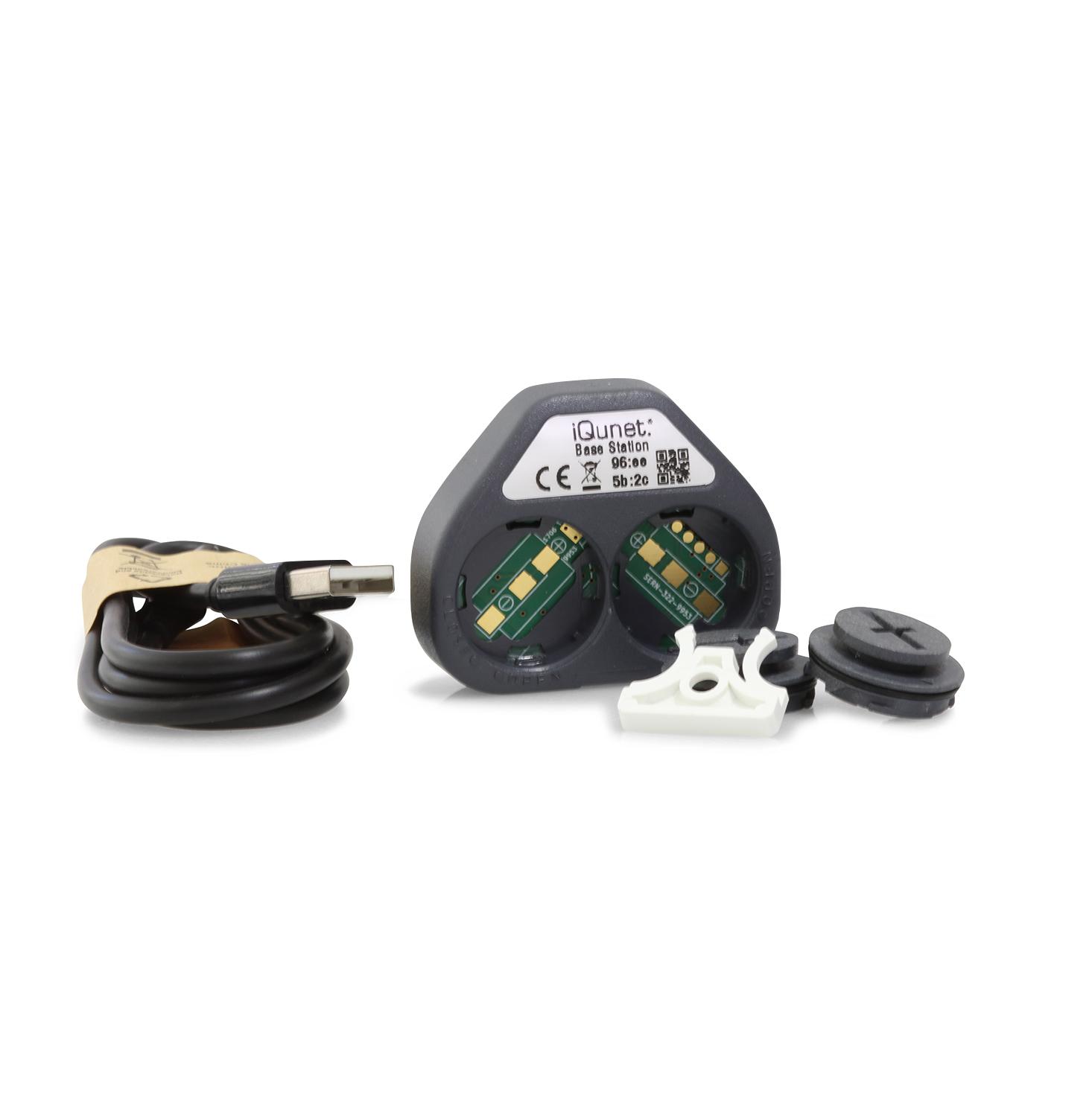

USB Base Station for existing systems

The IBAS169110-USB-ETH Base Station is an end-of-life component retained for replacement in existing systems. New projects use the PAN Coordinator.

It communicates with the original iQunet sensor network, not LoRaWAN sensors. Keep its original installation and cable information for supported existing installations.

Model references & specifications5 models

Choose a model to include in your quotation. Prices apply to the listed item or set, excluding VAT and shipping.

Wireless network components: model references and selection details
Model	Selection details
Wireless Sensor BridgeBRID201010-BOX24V-3CH	Channels Three AD-module slots for IEPE, current-clamp or supported 0–10 V inputs. Modules and sensors are not included. Recording One input per AD module. IEPE and current-clamp modules use independent clocks; their recordings are not phase-synchronized. Power 24 V DC. The 5.1 V / 15 W micro-USB option is limited to IEPE and current-clamp configurations. Network Original iQunet wireless network, with repeater module included. A CR2032 backup permits diagnostic ping only; it does not power repeating. Datasheet D1373 €482.74
USB-powered repeaterIREP168010-USB-BAC	Power Micro-USB, with a 1 m cable, USB mains charger and two CR2032 backup cells. Installation Clips for wall or cabinet mounting. Use one repeater at most between a sensor and its coordinator; each repeater needs a direct coordinator link. Radio coverage depends on placement and plant layout. Datasheet D1030
USB-powered actuatorIACT168110-USB-BAC	Function Repeater for the original iQunet wireless network, plus a 24 V switching output responding to sensor alarm broadcasts. Power Micro-USB, with a 1 m cable, USB mains charger and two CR2032 backup cells. Check output requirements before connection to a PLC or indicator. Datasheet D1029
Cellular access pointACCS633010-RBWAPR-2NDEU	Interfaces LTE Cat 4, one 10/100 Ethernet port and 2.4 GHz 802.11b/g/n Wi-Fi. Check the documented radio bands against the local operator. Power 9–30 V passive PoE. Supply at least 18 V to accommodate cable losses. Included PoE injector, 24 V / 0.8 A adapter, mounting base, screws, straps and thermal pad. Shielded Cat6 cable is separate. Installation IP54 model; mount outdoors with openings facing downwards. Datasheet D1378 €347.06
Original USB Base StationIBAS169110-USB-ETH	Status End of life, for replacement in existing installations. New projects use the PAN Coordinator. Compatibility Original iQunet wireless sensors only, not LoRaWAN. Powered by the server through the included micro-USB cable; clip mounting. Datasheet D1032

Signal and power cables

M8 power

Cable-powered vibration sensor

5 or 10 mRight-angle M8 to open wires

IEPE signal

Piezoelectric accelerometer

5, 10 or 15 mTwo-pin MIL to bridge terminals

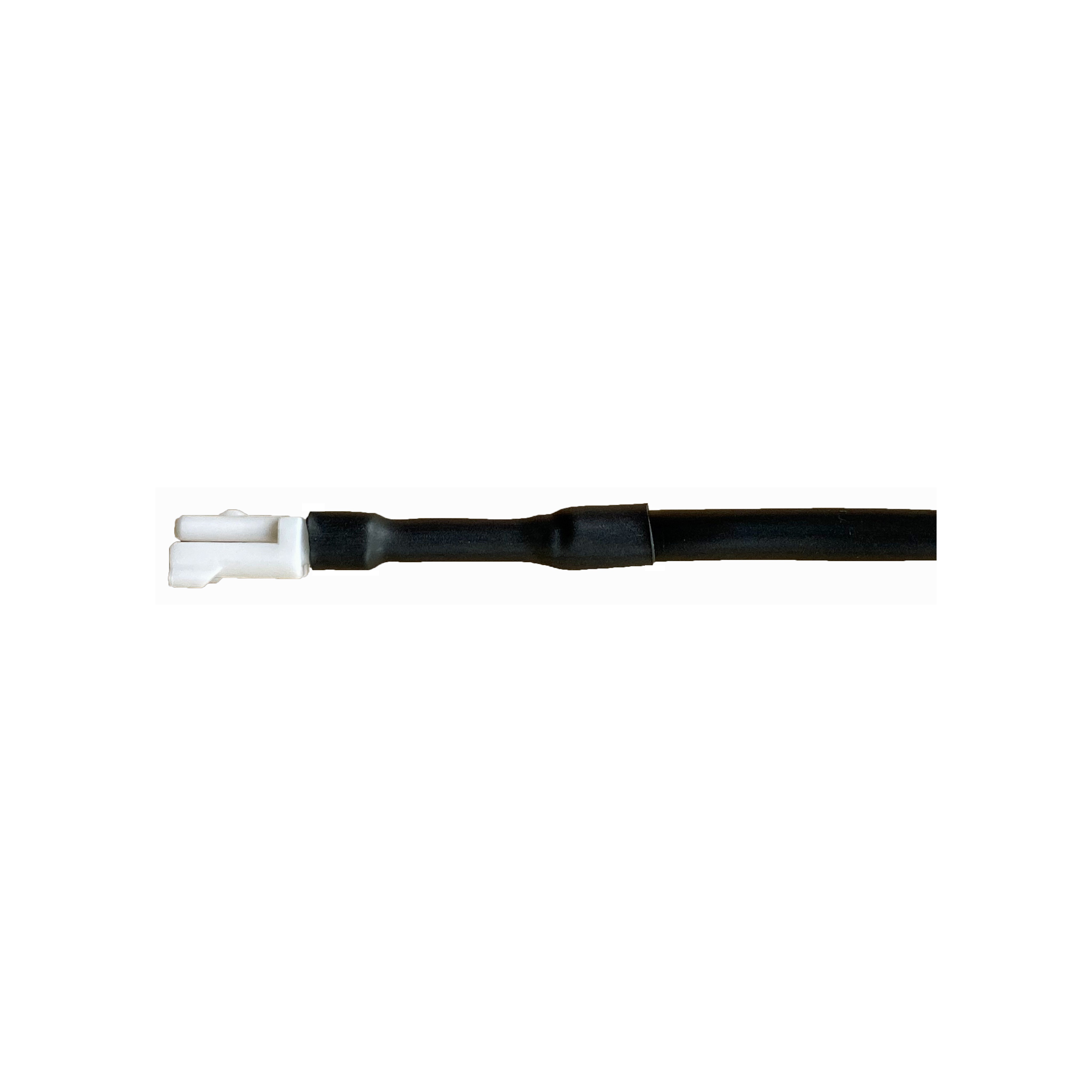

Current-clamp cable with matching connector

Current-clamp signal

iQunet current clamp

5, 10 or 15 mClamp connector to bridge terminals

Selection & installation notes

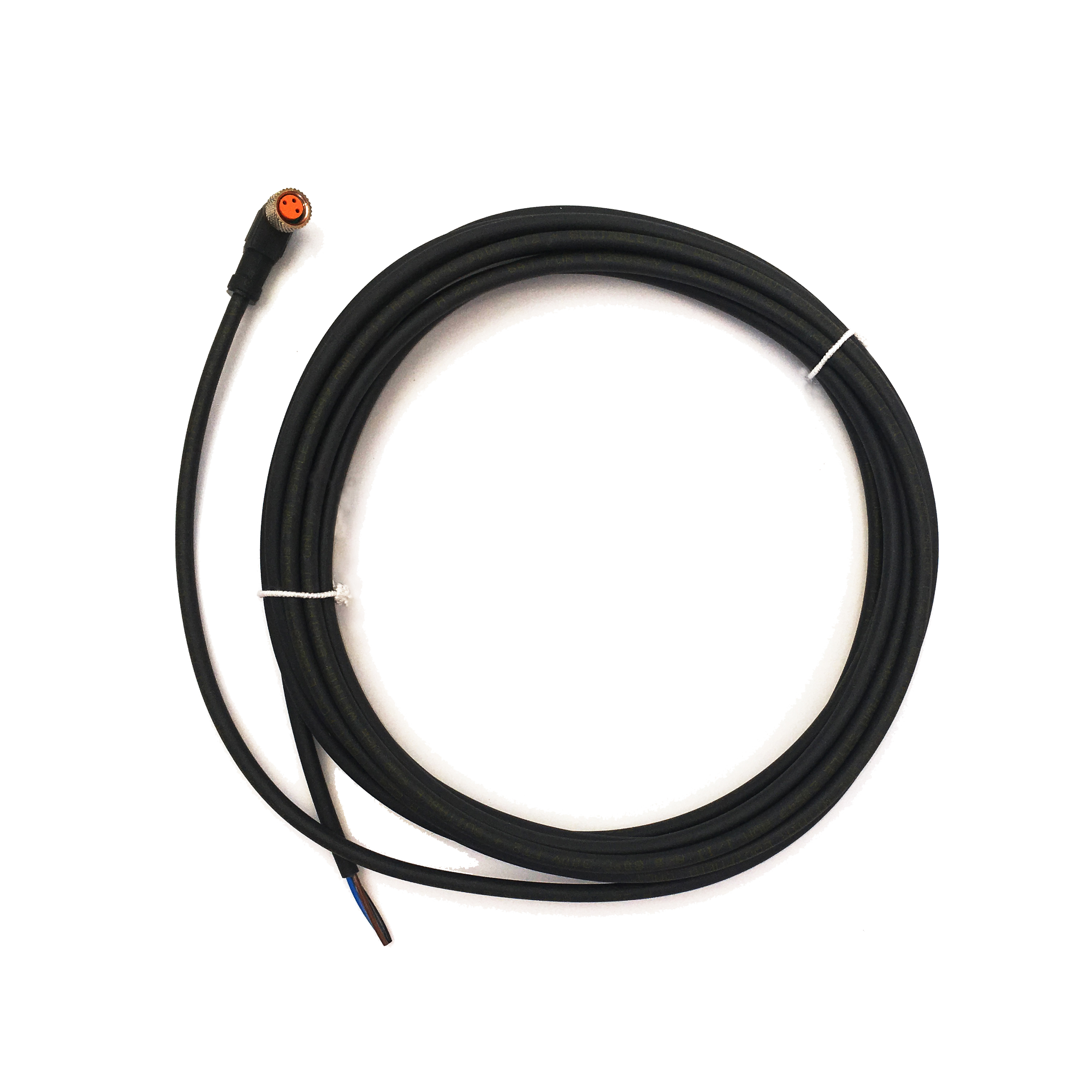

M8 sensor power cables

Power the cable-powered vibration sensor with a molded right-angle M8 cable. The opposite end is open for the appropriate power connection.

Documented lengths: 5 m and 10 m. These are sensor power cables, not IEPE signal cables.

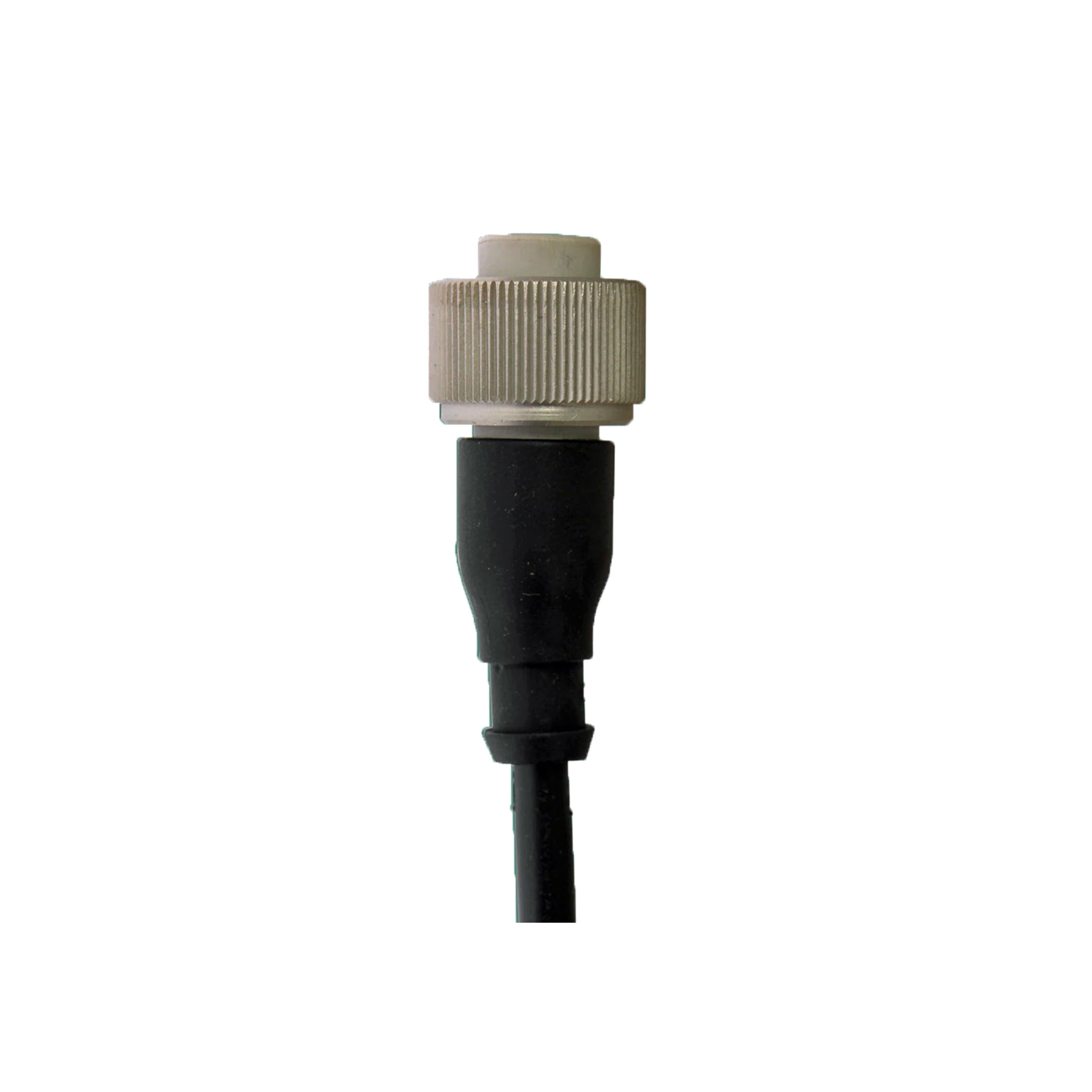

IEPE sensor cables

Shielded cables with a two-pin MIL connector connect an IEPE piezoelectric accelerometer to the Wireless Sensor Bridge and its IEPE acquisition module.

Documented lengths: 5 m, 10 m and 15 m. The bridge end is supplied blunt-cut for its terminals.

Current-clamp cables

Shielded cables with the iQunet current-clamp connector link the clamp to the Wireless Sensor Bridge and its matching current acquisition module.

Documented lengths: 5 m, 10 m and 15 m. Select the clamp-specific connector; a two-pin label alone does not establish interchangeability.

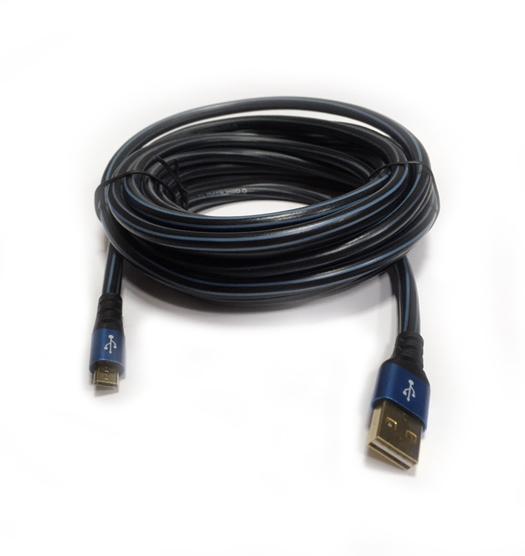

Remote Base Station USB cable

The shielded 5 m micro-USB cable allows an original Base Station to be positioned away from its server for better radio placement.

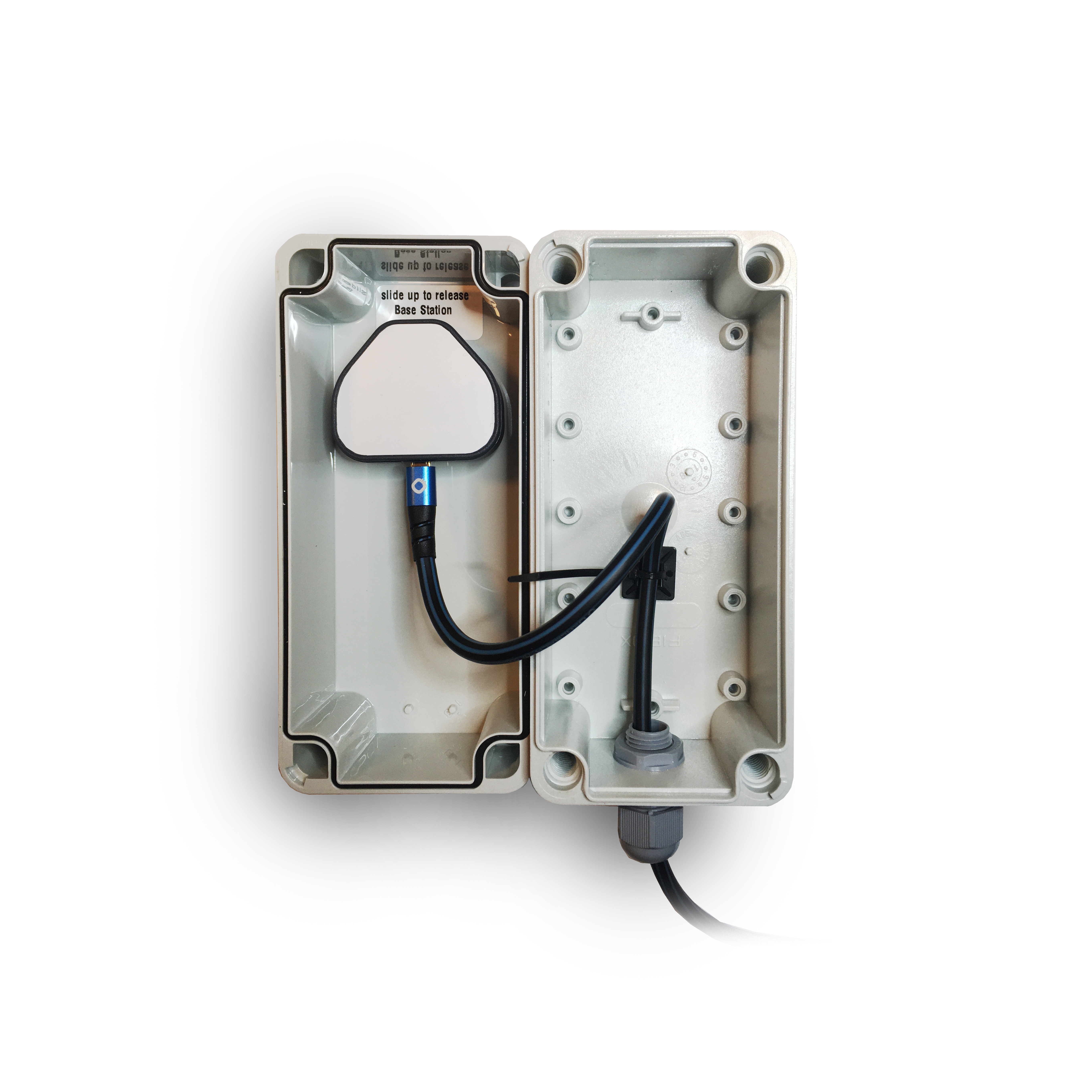

The source also pairs it with the IP67 Base Station box. It is an accessory for the original Base Station installation.

Model references & specifications9 models

Choose a model to include in your quotation. Prices apply to the listed item or set, excluding VAT and shipping.

Signal and power cables: model references and selection details
Model	Selection details
5 m M8 power cableACCS616210-M8-5MTR	Connector Three-contact female M8, right angle with threaded locking; open cable end. Application Power connection for IVIB161410-24V-PWR. Molded, halogen-free PUR cable. Datasheet D1027 €35.92
10 m M8 power cableACCS616211-M8-10MTR	Connector Three-contact female M8, right angle with threaded locking; open cable end. Application Power connection for IVIB161410-24V-PWR. Molded, halogen-free PUR cable. Datasheet D1345 €55.50
5 m IEPE cableCONN261005-MIL2P-5MTR	Connector Two-pin MIL, stainless-steel AISI 316L connector; blunt-cut end at the bridge. Cable Shielded PU twisted pair, 2 × 0.5 mm². IP67 assembly, −30°C to +90°C. Shield is not connected to the connector nut. Datasheet D1380 €101.83
10 m IEPE cableCONN261010-MIL2P-10MTR	Connector Two-pin MIL, stainless-steel AISI 316L connector; blunt-cut end at the bridge. Cable Shielded PU twisted pair, 2 × 0.5 mm². IP67 assembly, −30°C to +90°C. Shield is not connected to the connector nut. Datasheet D1382 €137.92
15 m IEPE cableCONN261015-MIL2P-15MTR	Connector Two-pin MIL, stainless-steel AISI 316L connector; blunt-cut end at the bridge. Cable Shielded PU twisted pair, 2 × 0.5 mm². IP67 assembly, −30°C to +90°C. Shield is not connected to the connector nut. Datasheet D1371 €158.99
5 m current-clamp cableCONN262005-CLAMP-5MTR	Connector Two-pin Molex Ditto self-mating connector with friction lock; blunt-cut end at the bridge. Cable Shielded PVC, 2 × 0.5 mm²; −20°C to +105°C. No IP rating is specified for this assembly. Datasheet D1381 €53.05
10 m current-clamp cableCONN262010-CLAMP-10MTR	Connector Two-pin Molex Ditto self-mating connector with friction lock; blunt-cut end at the bridge. Cable Shielded PVC, 2 × 0.5 mm²; −20°C to +105°C. No IP rating is specified for this assembly. Datasheet D1367 €79.07
15 m current-clamp cableCONN262015-CLAMP-15MTR	Connector Two-pin Molex Ditto self-mating connector with friction lock; blunt-cut end at the bridge. Cable Shielded PVC, 2 × 0.5 mm²; −20°C to +105°C. No IP rating is specified for this assembly. Datasheet D1368 €105.04
5 m Base Station USB extensionACCS616010-USB-5MTR	Connector Micro-USB B to USB A, with braided shielding and PVC cable. Application Remote placement of the original Base Station. Also included with the ACCS616810-BOX-BS enclosure.

Sensor mounting

Magnetic

Ø 32 mm mount for an appropriate flat surface.

Removable attachment

Screw

M3 × 20 mm screws for compatible sensor mounting points.

Pack of 20 screws

Adhesive

50 ml epoxy cartridge with one static mixer.

Dispenser and extra mixers available

Selection & installation notes

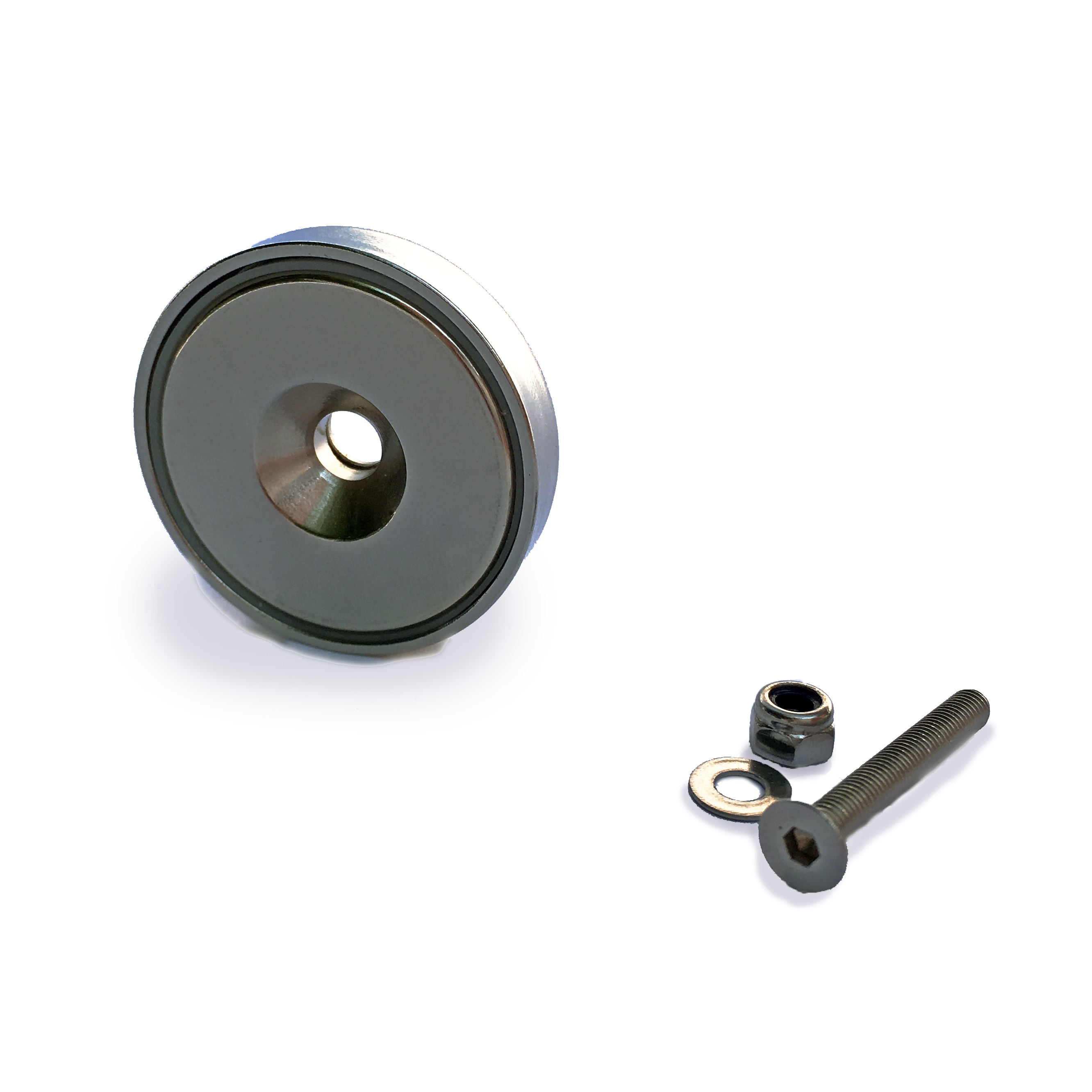

Magnetic mount

A 32 mm magnetic mount with bolt and nut for temporary mounting on an appropriate flat surface.

Read the mounting and safety instructions. Mechanical attachment and the measurement installation must suit the application.

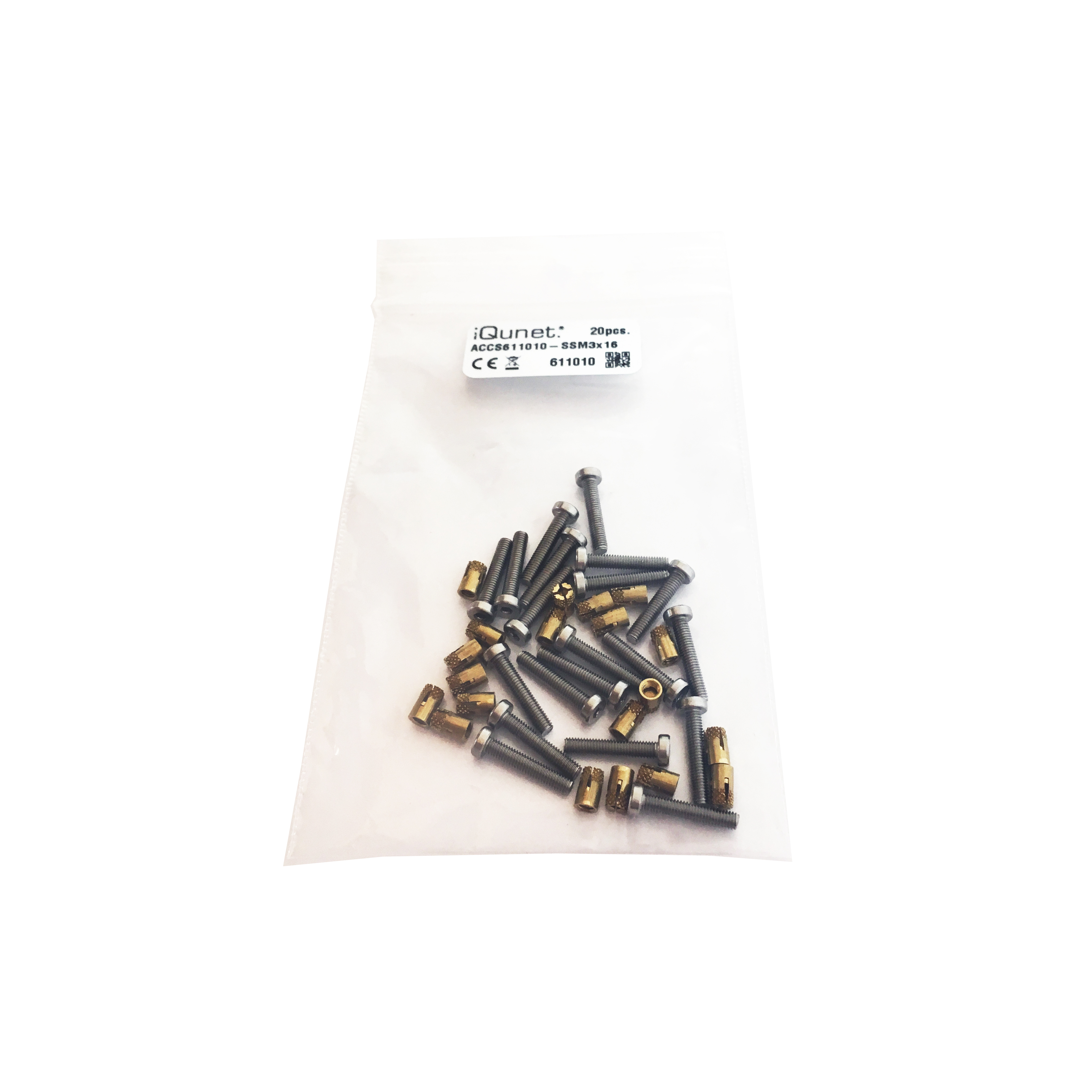

Screw mounting

M3 × 20 stainless-steel hex-socket screws for compatible sensor mounting points.

The catalogue pack contains 20 screws. Use the mounting instructions for the exact sensor.

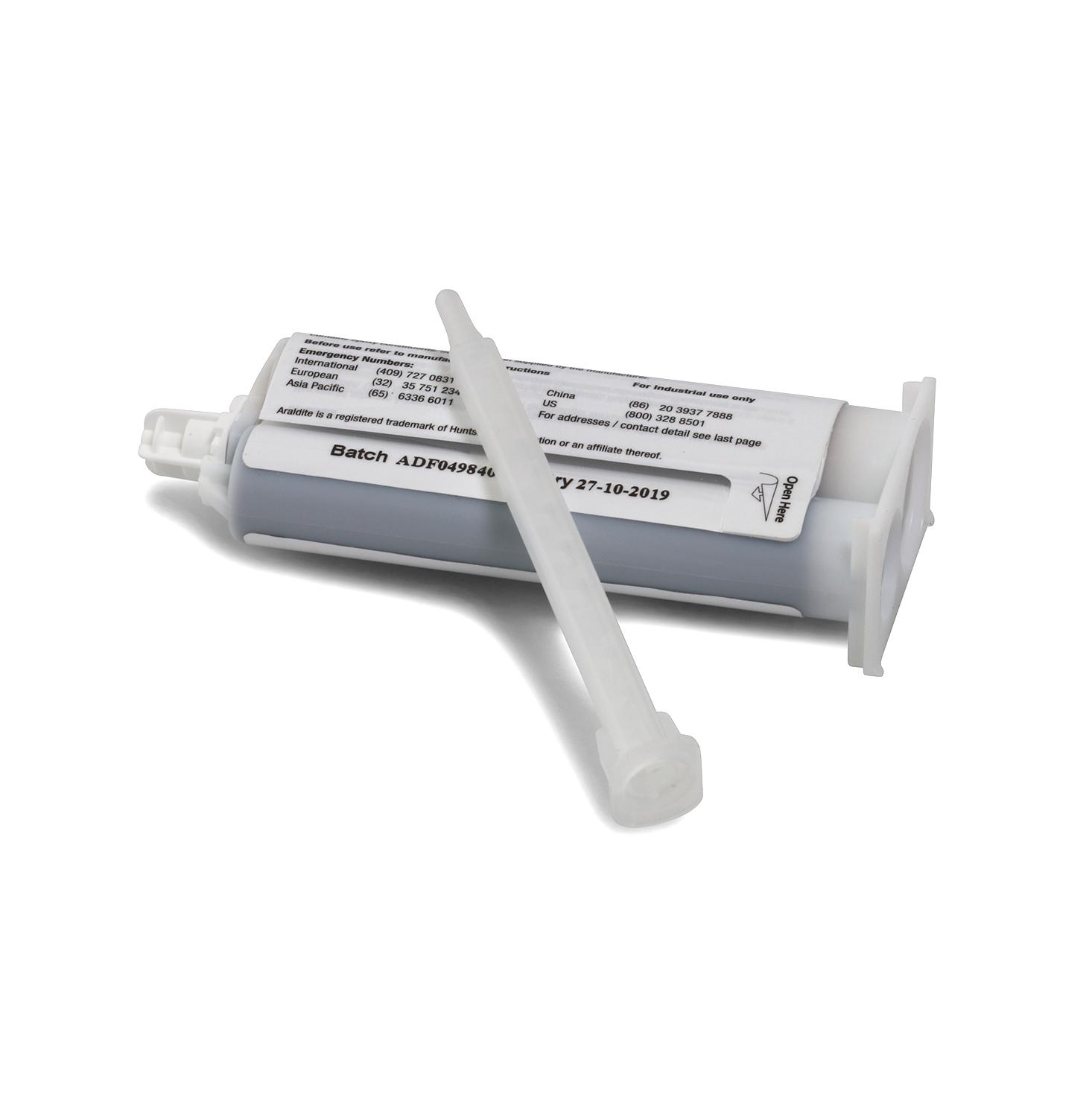

Epoxy mounting

Grey two-part epoxy in a 50 ml dual cartridge for adhesive mounting of compatible sensors.

The cartridge includes one static mixer. A matching dispenser gun and replacement mixing nozzles are separate accessories.

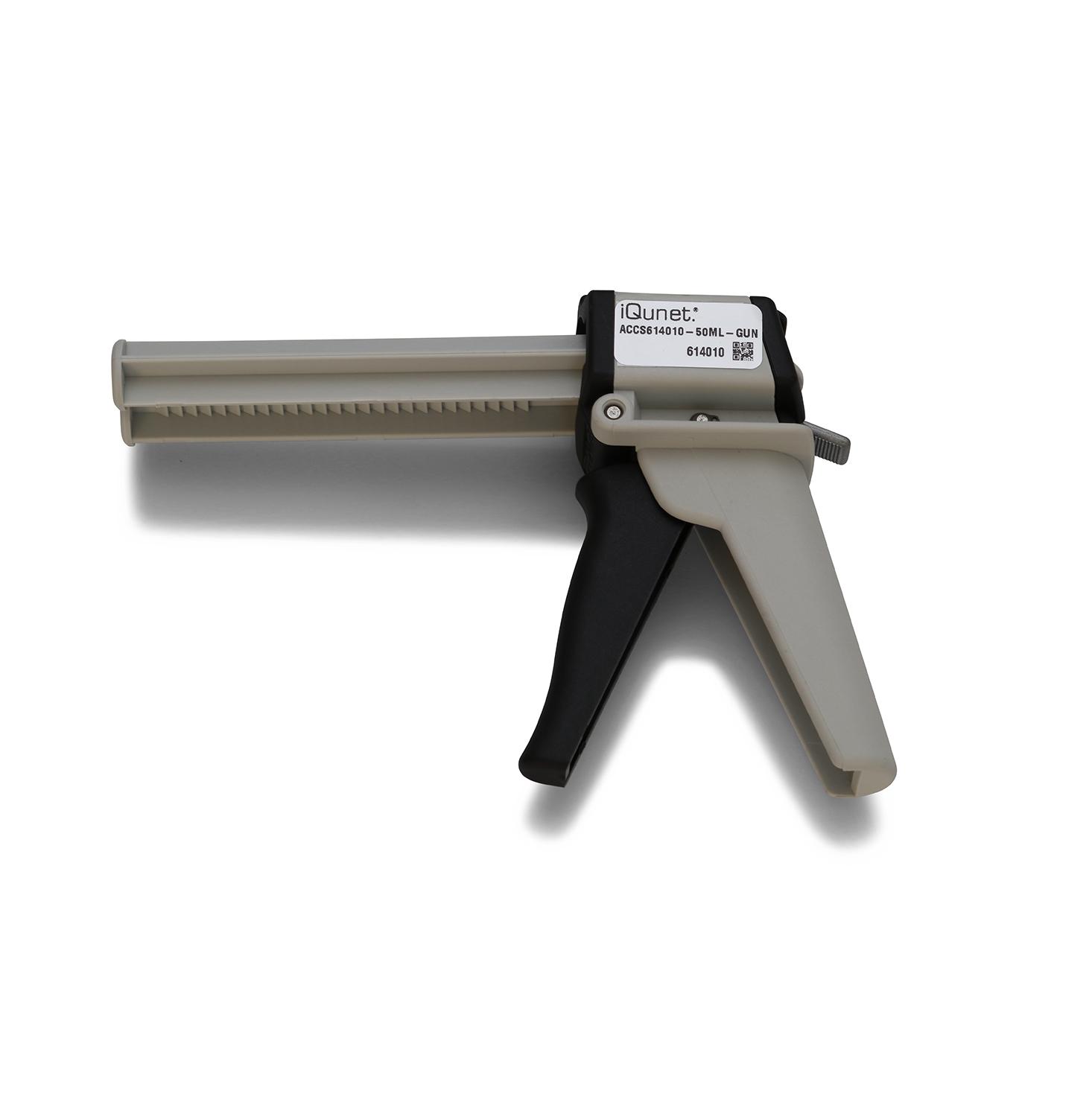

Adhesive dispenser

A dispenser gun for the 50 ml epoxy cartridge.

Use with the matching cartridge and mixer.

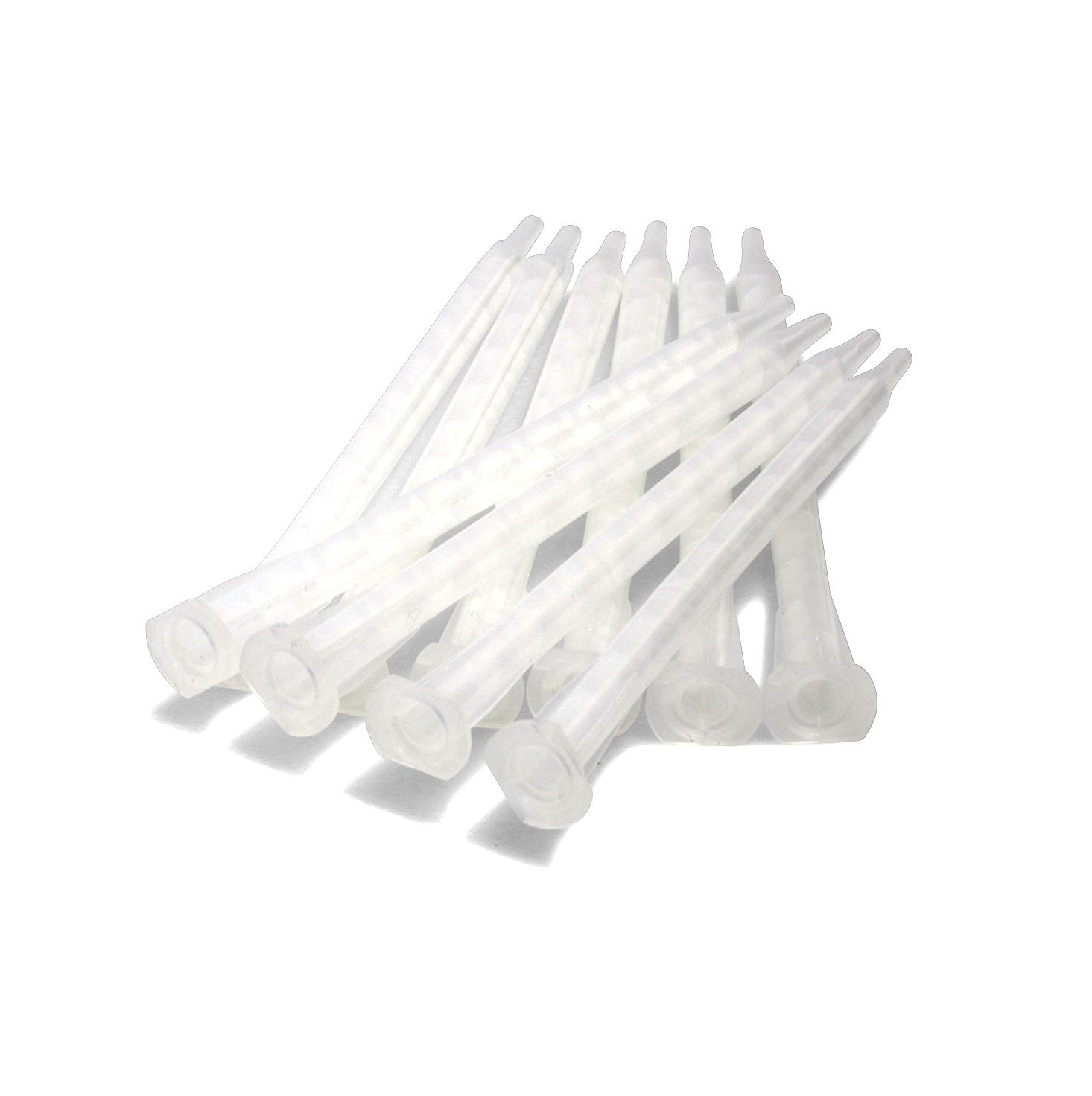

Static mixers

Bayonet-fit mixing nozzles for the 50 ml epoxy cartridge.

The catalogue pack contains ten nozzles.

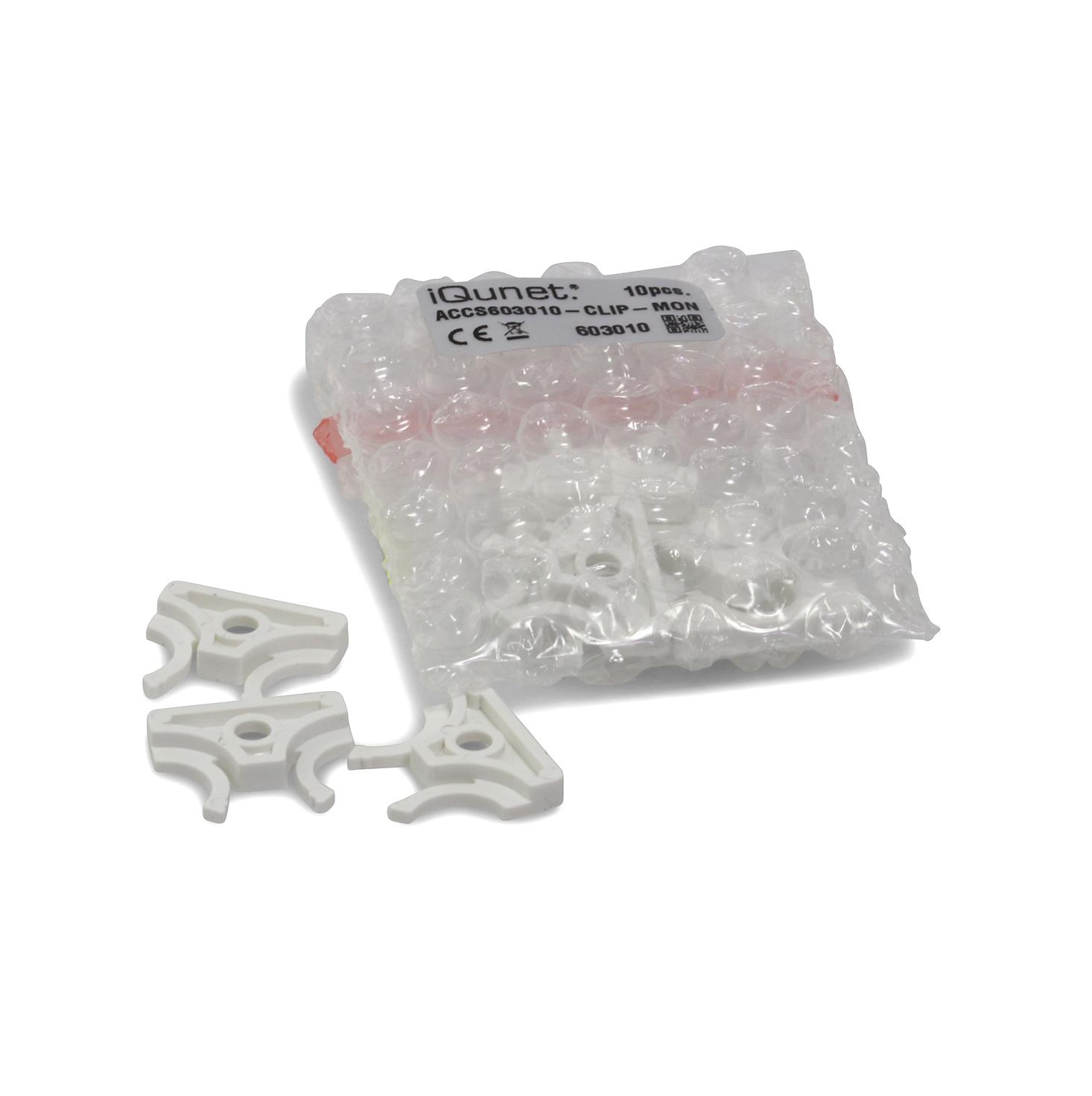

Wall-mounting clips

Clips for attaching the original Base Station, repeater or actuator to a wall or cabinet.

The catalogue pack contains ten clips. Check the enclosure and mounting method before selecting replacements.

Model references & specifications6 models

Choose a model to include in your quotation. Prices apply to the listed item or set, excluding VAT and shipping.

Sensor mounting: model references and selection details
Model	Selection details
Magnetic sensor mountACCS622010-MAGN-3230	Assembly Ø32 mm magnetic mount, including bolt and nut; 7 mm magnet height. Use Nominal pull force: 30 kg. Working load depends on the surface and installation. Follow the magnetic-mount safety instructions. Datasheet D1028Magnetic mount safety D1044
Stainless-steel mounting screwsACCS611010-SSM3-X20	Pack 20 M3 × 20 mm hex socket cap screws. Use Mechanical mounting of compatible iQunet sensors. €18.35
Epoxy adhesive cartridgeACCS612010-50ML-EPXY	Pack One 50 ml grey, two-part cartridge, including one static mixer. Application For adhesive sensor mounting with gaps up to 5 mm. Use the matching 50 ml dispenser gun. €39.14
Adhesive dispenser gunACCS614010-50ML-GUN	Compatibility For the 50 ml dual-cartridge epoxy adhesive. Adhesive cartridges are separate. €95.76
Replacement static mixersACCS613010-50ML-MIX	Pack 10 bayonet static mixers for the 50 ml epoxy cartridge. €21.42
Wall-mounting clipsACCS603010-CLIP-MON	Pack 10 clips for the original Base Station, repeater and actuator.

Replacement batteries

Low holders

CR2032 batteries with replacement gaskets.

10 batteries / holdersFor compatible screw or adhesive installations

High holders

Standard CR2032 replacement set with gaskets.

2 batteries / holdersMatch the installed holder

MAX holders

Larger CR123A battery set with locking clips.

2 batteriesEmpty replacement holders also available

Selection & installation notes

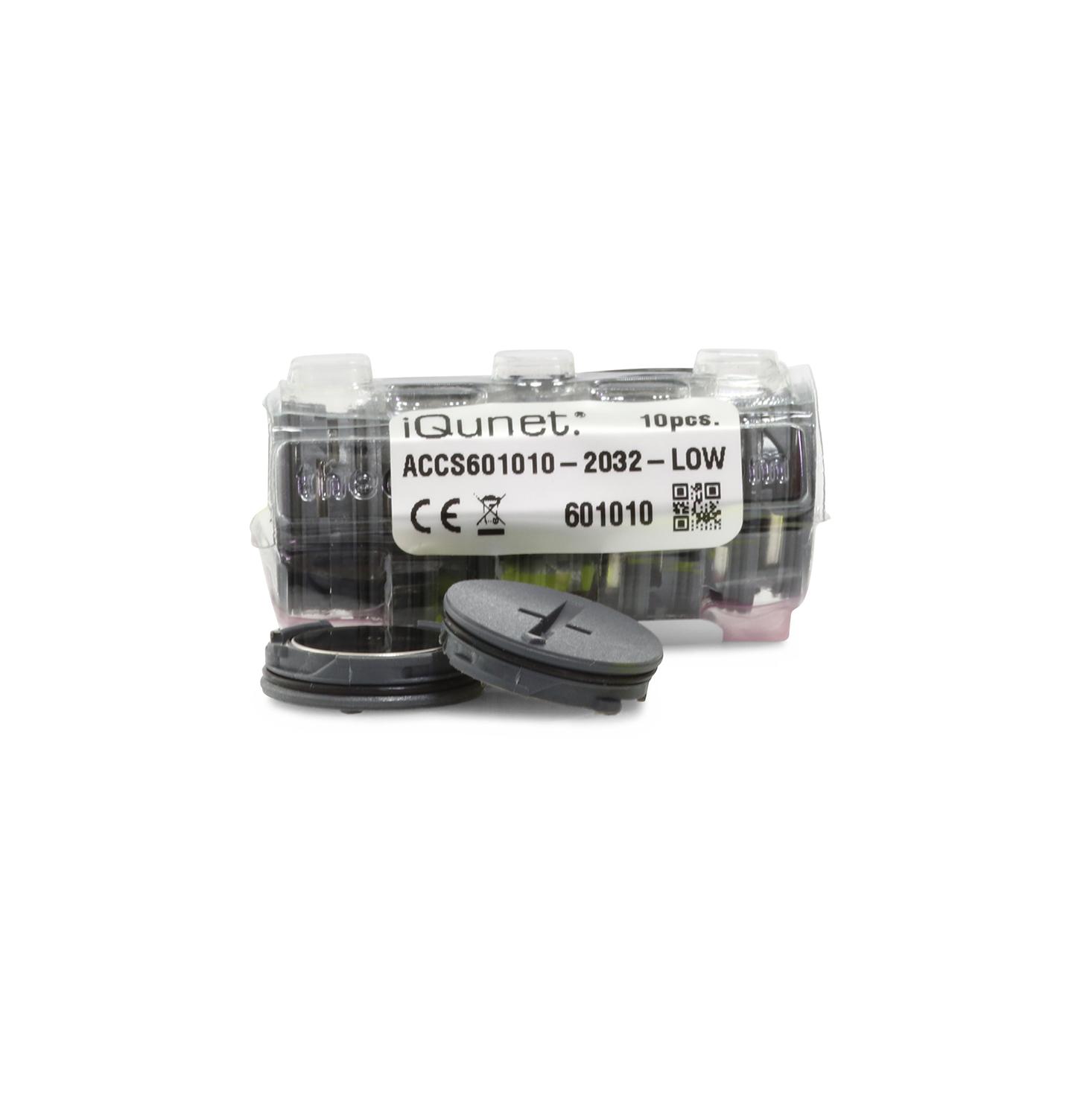

CR2032 batteries in low holders

Preassembled replacement CR2032 batteries in low holders for compatible sensors mounted with screws or adhesive.

The catalogue pack contains ten batteries/holders. Each holder includes a replacement gasket. Follow the model-specific replacement procedure.

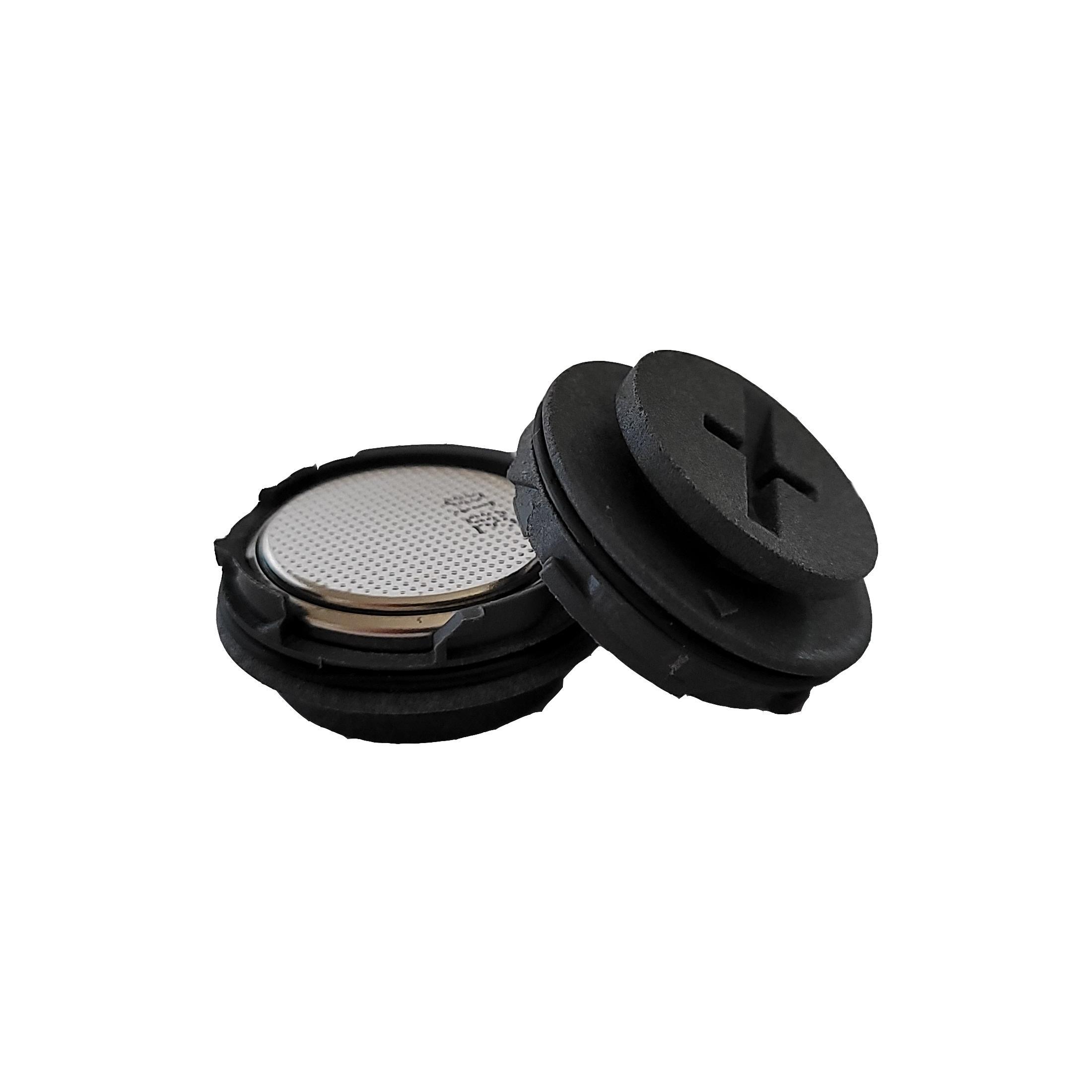

CR2032 batteries in high holders

Preassembled CR2032 batteries in high holders with replacement gaskets. The 2025 installation training illustrates this standard set with the IVIB161010 vibration sensor.

The set contains two batteries. Match the device and holder, and follow the illustrated installation procedure before replacing the batteries.

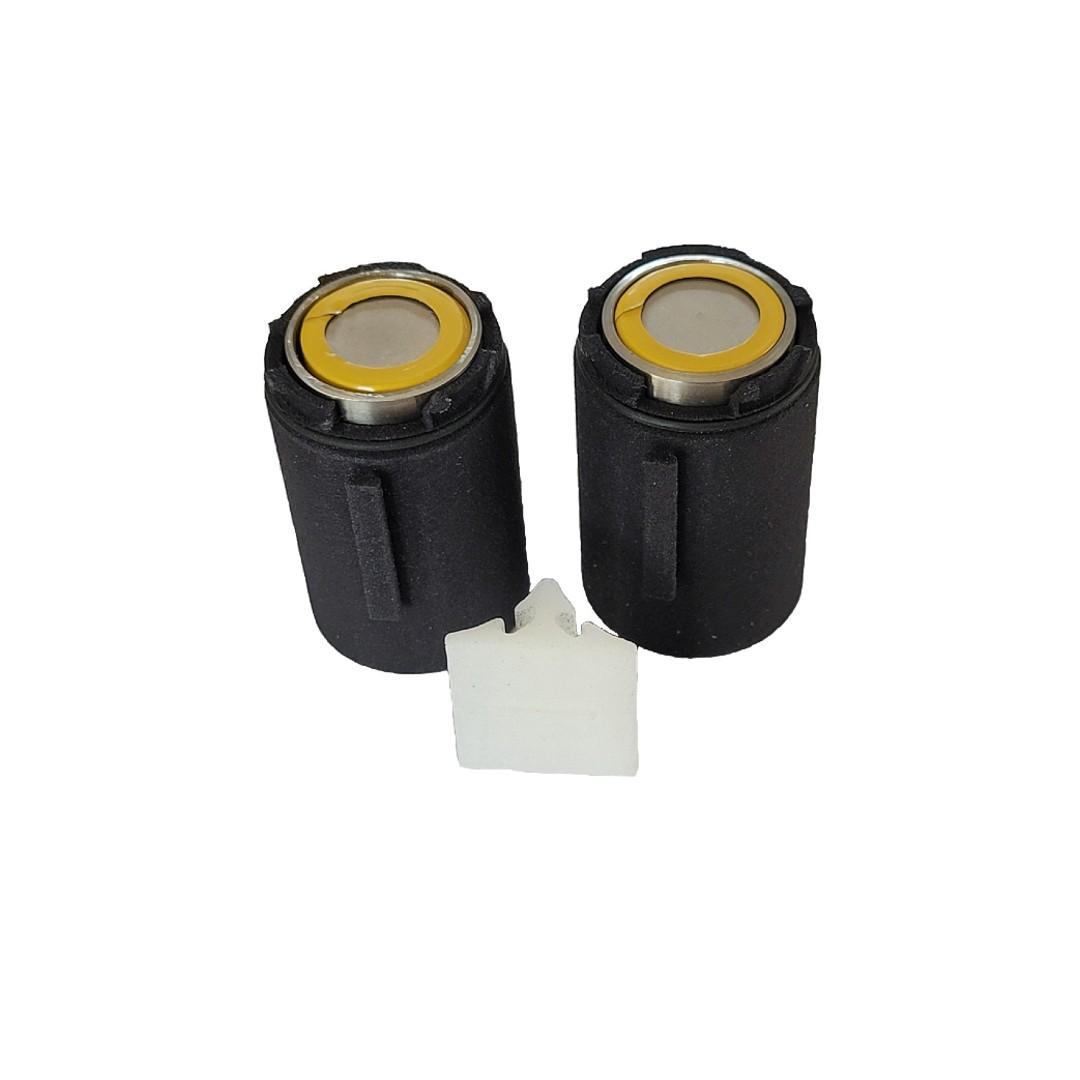

CR123A batteries in MAX holders

A larger preassembled battery option for compatible battery-powered sensors, supplied with locking clips.

The catalogue set contains two large batteries. Runtime depends on the sensor, recording configuration and temperature.

Model references & specifications4 models

Choose a model to include in your quotation. Prices apply to the listed item or set, excluding VAT and shipping.

Replacement batteries: model references and selection details
Model	Selection details
CR2032 low-holder replacementsACCS601010-2032-LOW	Pack 10 CR2032 batteries supplied preassembled in low holders, with replacement gaskets. Compatibility For compatible screw-mounted or adhesive-mounted sensors. Match the installed holder before ordering.
CR2032 high-holder replacementsACCS602010-2032-IP68	Pack Two CR2032 batteries supplied preassembled in high holders, with new gaskets. Compatibility Standard replacement battery set for the IVIB161010 vibration sensor. Match the installed high holder before ordering. Battery installation, rev. 250212 €23.72
CR123A MAX-holder replacementsACCS604010-123A-MAX	Pack Two CR123A batteries supplied preassembled in MAX holders, including locking clips. Compatibility For compatible battery-powered sensors mounted by screw or adhesive. Runtime depends on the measurement configuration. Installation The locking clips must remain fitted during use. Follow the illustrated holder orientation and hand-tightening instructions. Battery installation, rev. 250212 €91.20
Shown with batteries; supplied empty. MAX replacement holders, without batteriesACCS604110-HOLDER-MAX	Contents Replacement MAX holder set, without batteries. Non-rechargeable industrial CR123A Li-MnO₂ cells must be purchased separately. Installation Fit the holders in the orientation shown in the installation guide, tighten by hand and secure the locking clips. Battery installation, rev. 250212

Datasheets & instructions 2 documents

Battery-powered sensor battery replacementCable-powered vibration sensor backup battery

Power supplies by device

Sensor and bridge power

DIN-rail 24 V supply for the cable-powered vibration sensor and Wireless Sensor Bridge. Use the model specifications to match the connected load.

Earlier server power

Match the connector and input voltage to your GEN3, GEN4 or earlier industrial server. The M4 has its own package and power options.

M4 package options

Selection & installation notes

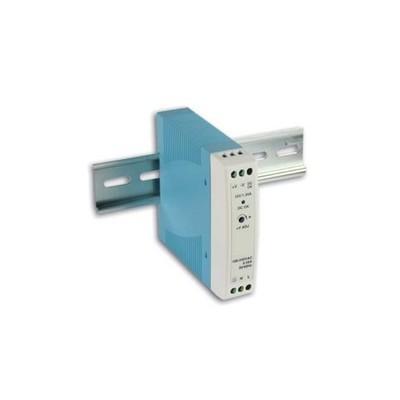

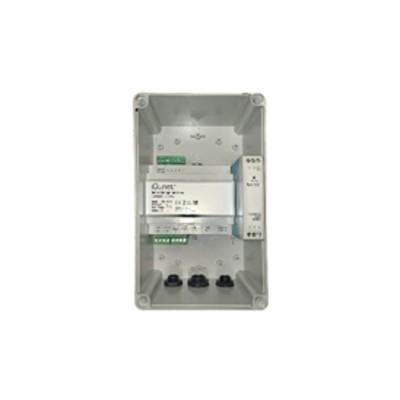

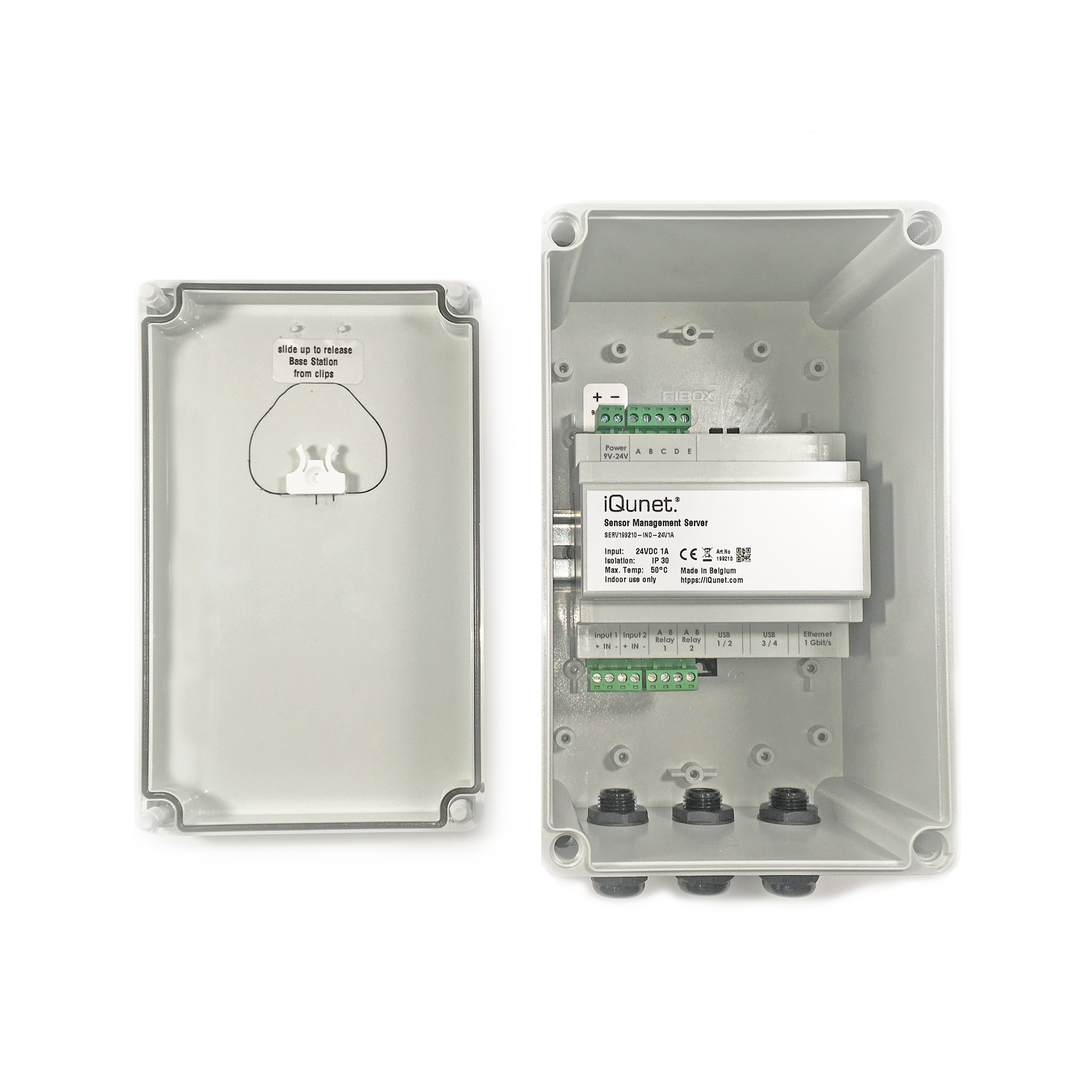

24 V server supply

DIN-rail AC/DC power supply, ACCS615310-230V-24V1A, documented for the 24 V iQunet server.

Match the server model and load. A shared 24 V label does not by itself establish compatibility with every gateway or accessory.

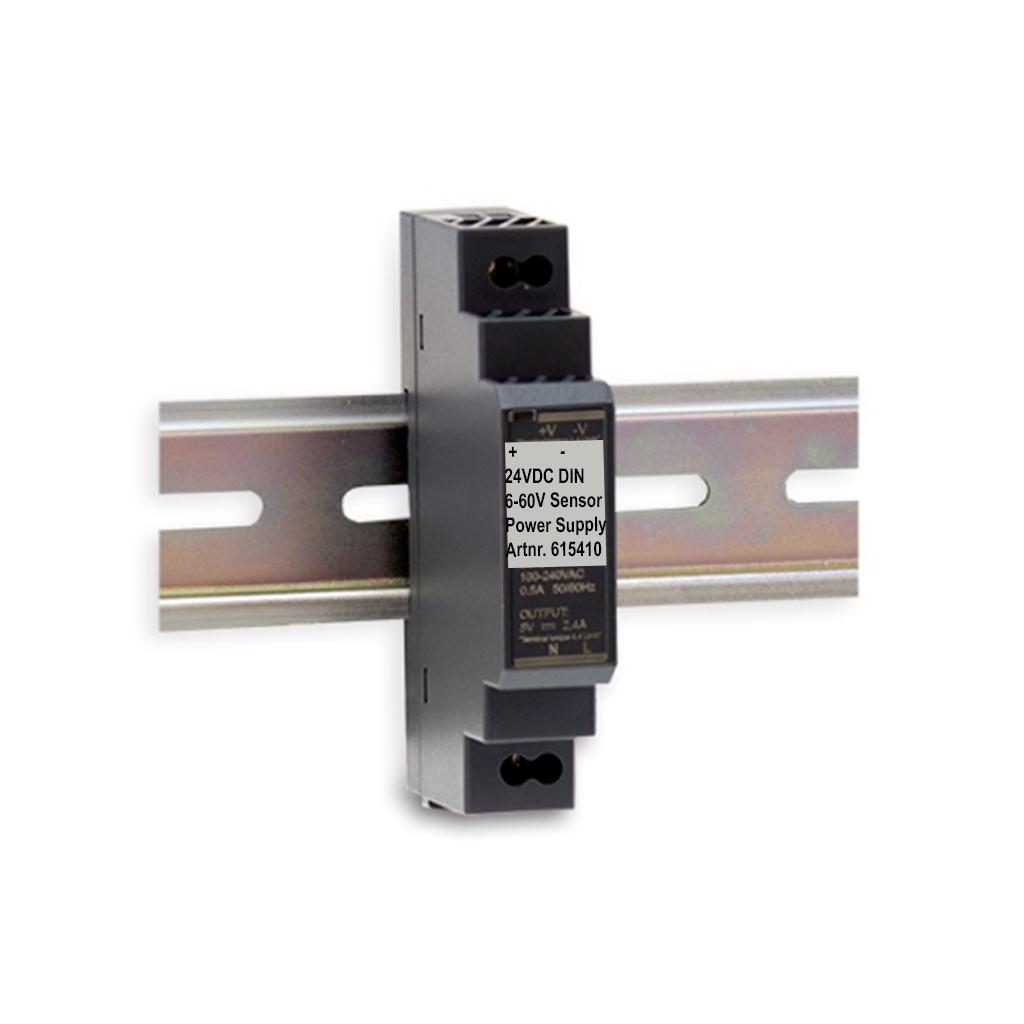

24 V sensor and bridge supply

DIN-rail supply ACCS615410-230v-24V06A for the IVIB161410 cable-powered vibration sensor or BRID201010 Wireless Sensor Bridge.

This supply has a different current rating from the server supply. Calculate the connected load and use the correct installation document.

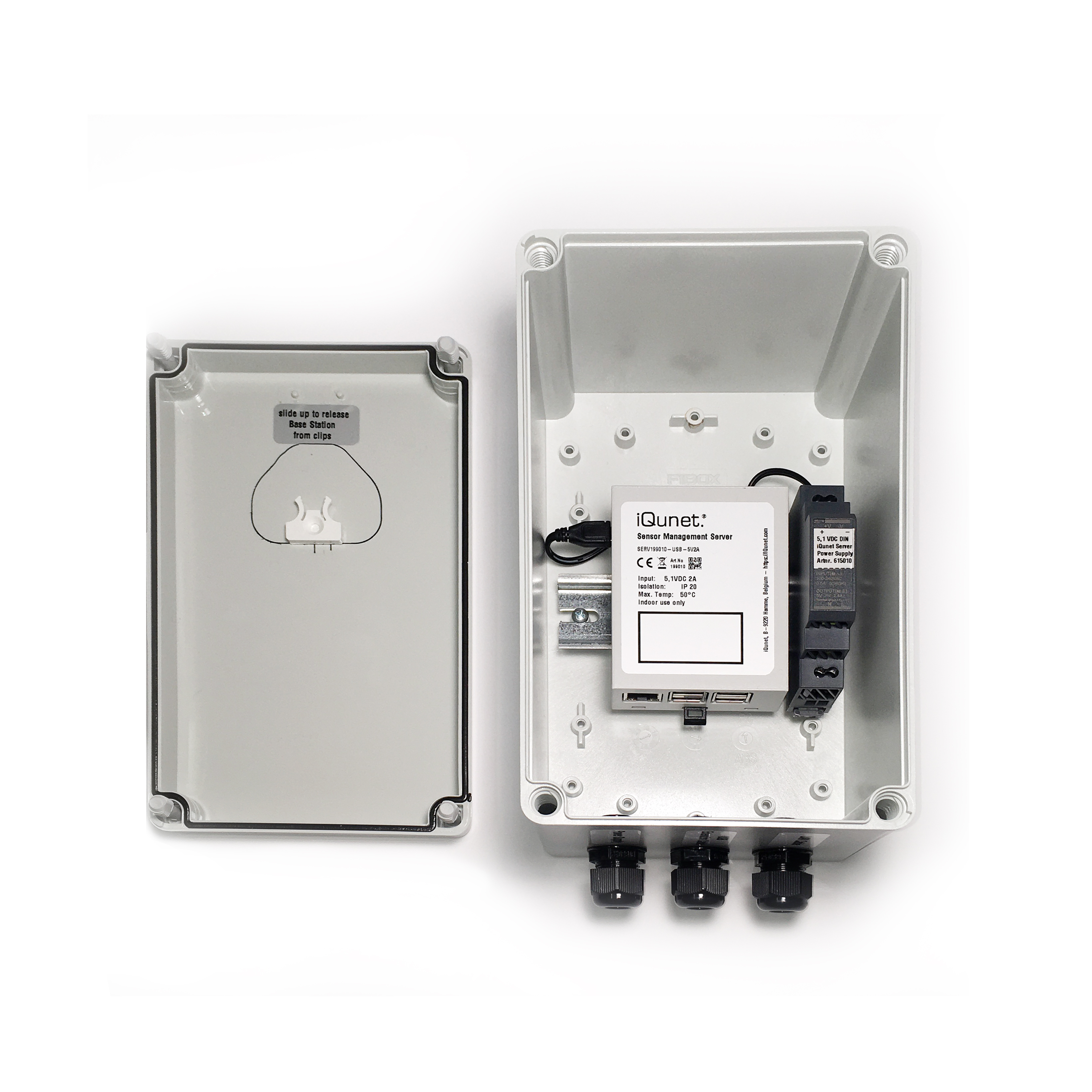

GEN3 supply, AC input

5.1 V DIN-rail supply with micro-USB B output for the documented GEN3 server.

ACCS615010-B230V-5V2A. This is a previous-generation server accessory.

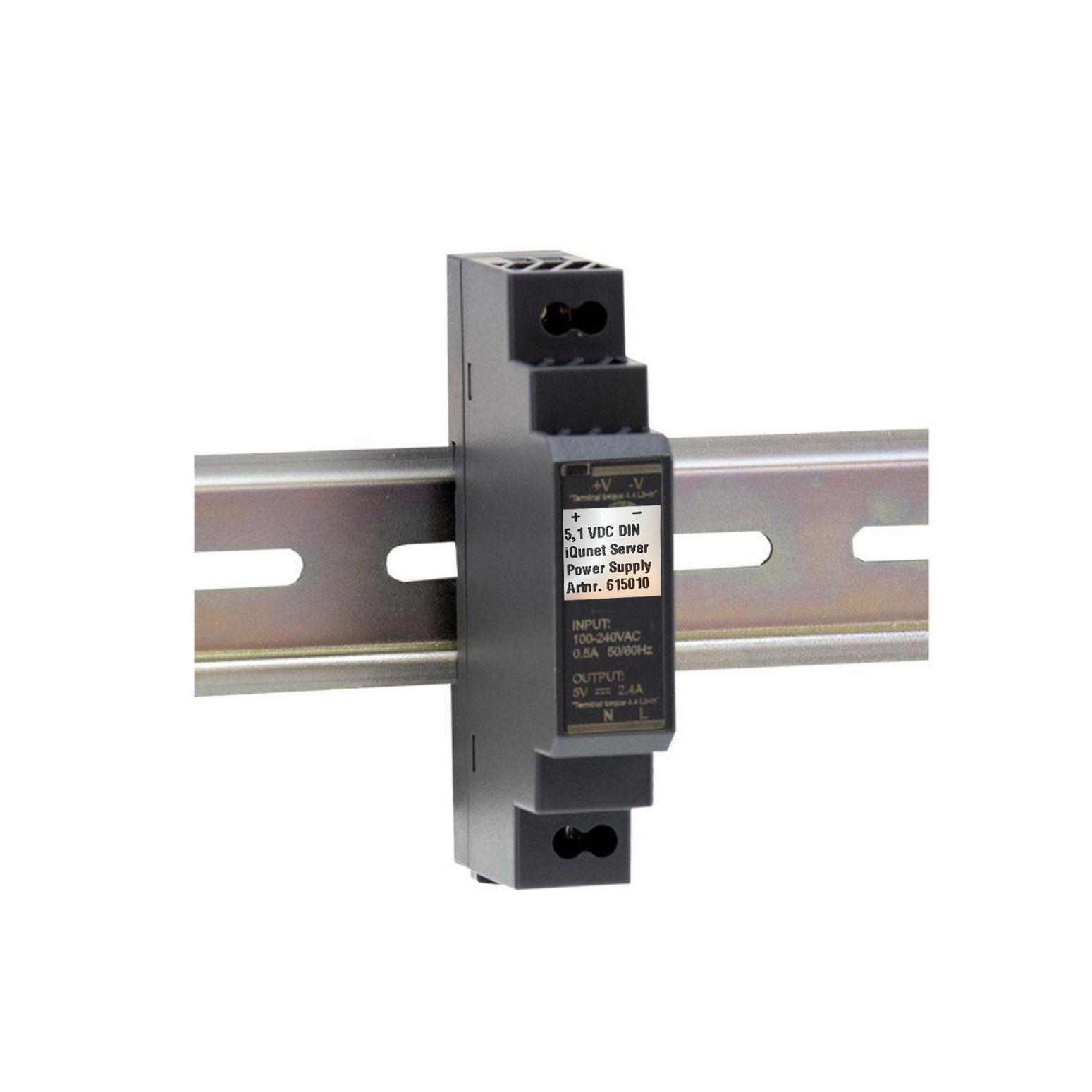

GEN4 supply, AC input

5.1 V DIN-rail supply with USB-C output for the documented GEN4 server.

ACCS615011-C230V-5V2A. GEN4 here is the older server generation, not the Edge Gateway M4 model name.

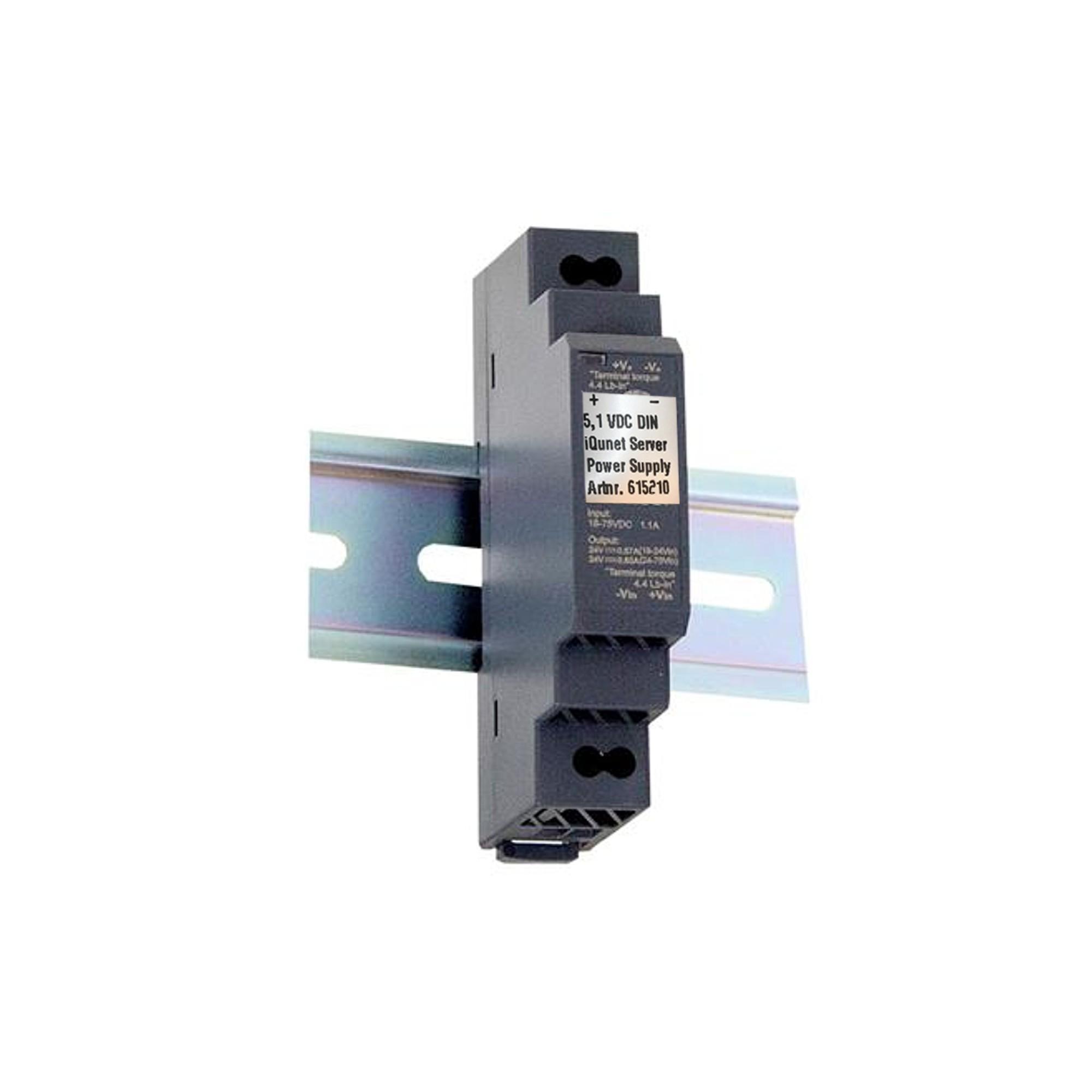

GEN3 supply, DC input

DIN-rail converter with 9–36 V DC input and 5.1 V output through micro-USB B for the documented GEN3 server.

ACCS615210-B24VDC-5V3A. Match voltage, capacity and connector to the server.

GEN4 supply, DC input

DIN-rail converter with 9–36 V DC input and 5.1 V output through USB-C for the documented GEN4 server.

ACCS615211-C24VDC-5V3A. Keep this distinct from the M4 power configuration.

Model references & specifications6 models

Choose a model to include in your quotation. Prices apply to the listed item or set, excluding VAT and shipping.

Power supplies by device: model references and selection details
Model	Selection details
GEN3 AC-input supplyACCS615010-B230V-5V2A	Connection 5.1 V output through micro-USB B, for the older GEN3 server. DIN-rail installation in a box. Rating check Match the replacement to the fitted supply label: input voltage, output rating, connector and dimensions. Datasheet D1411
GEN4 AC-input supplyACCS615011-C230V-5V2A	Connection 5.1 V output through USB-C, for the older GEN4 server. DIN-rail installation in a box. Rating check Match the replacement to the fitted supply label: input voltage, output rating, connector and dimensions. Datasheet D1412
GEN3 DC-input supplyACCS615210-B24VDC-5V3A	Ratings 9–36 V DC input; 5.1 V DC output, 3 A maximum, 15 W maximum. Connection micro-USB B output for the older GEN3 server. DIN-rail installation in a box; screw-terminal input. Datasheet D1413
GEN4 DC-input supplyACCS615211-C24VDC-5V3A	Ratings 9–36 V DC input; 5.1 V DC output, 3 A maximum, 15 W maximum. Connection USB-C output for the older GEN4 server. DIN-rail installation in a box; screw-terminal input. Datasheet D1414
24 V server supplyACCS615310-230V-24V1A	Ratings 85–264 V AC input; nominal 24 V DC output, 1 A maximum, 24 W maximum. Installation DIN-rail mounting in a box, with screw terminals. Confirm compatibility with the installed server model. Datasheet D1409 €73.13
24 V sensor and bridge supplyACCS615410-230v-24V06A	Ratings 110–230 V AC input; nominal 24 V DC output, 0.63 A maximum, 15.2 W maximum. Application 24 V powered vibration sensors or the Wireless Sensor Bridge. DIN-rail mounting in a box, with screw terminals. Datasheet D1451

Enclosures and portable systems

Put the M4 where the work happens

A permanent enclosure keeps the connections together at the machine. A portable case carries the M4 between measurement locations. Each assembly is specified separately from the standard M4 package.

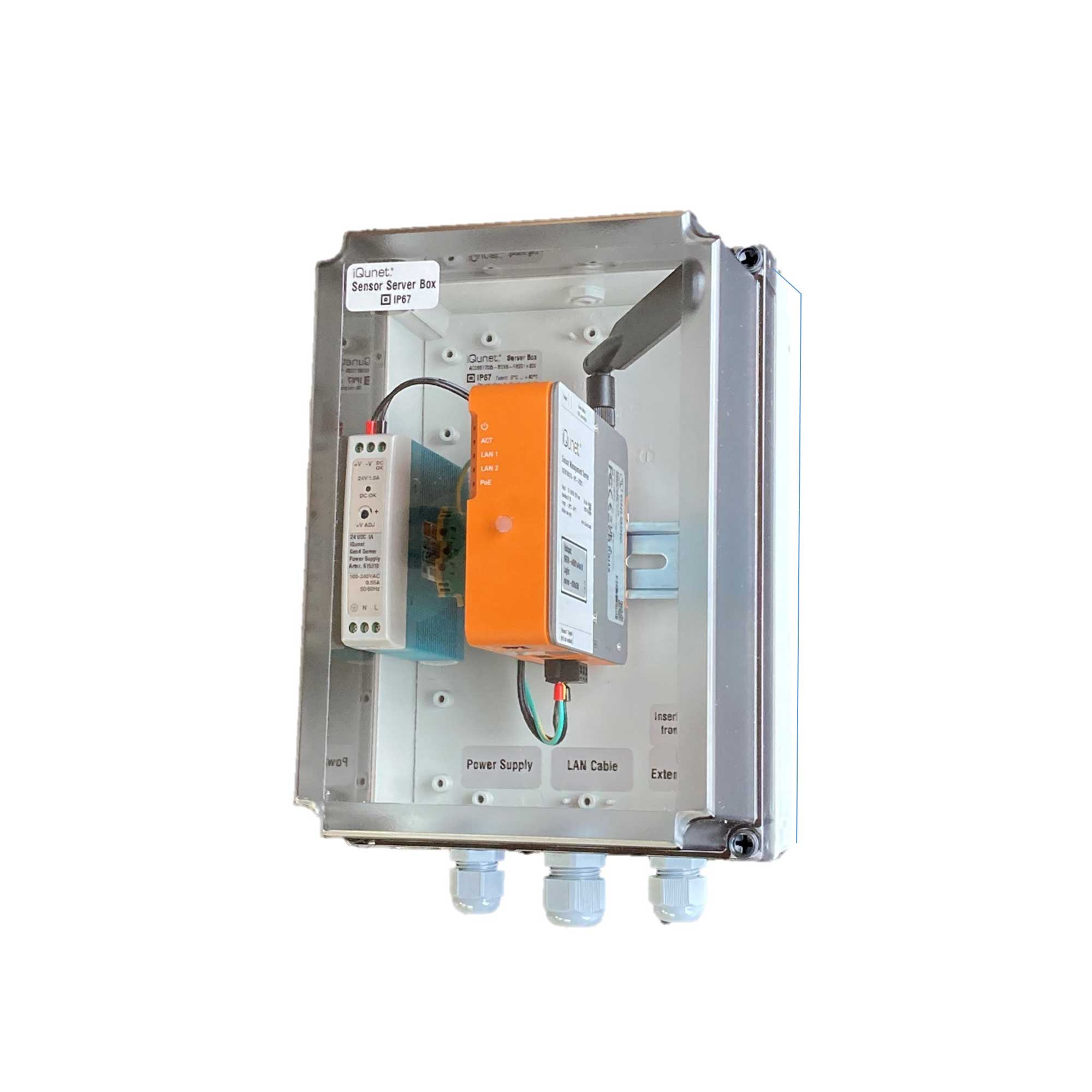

Permanent installation

Bring power, gateway and the selected network connection into one enclosure.

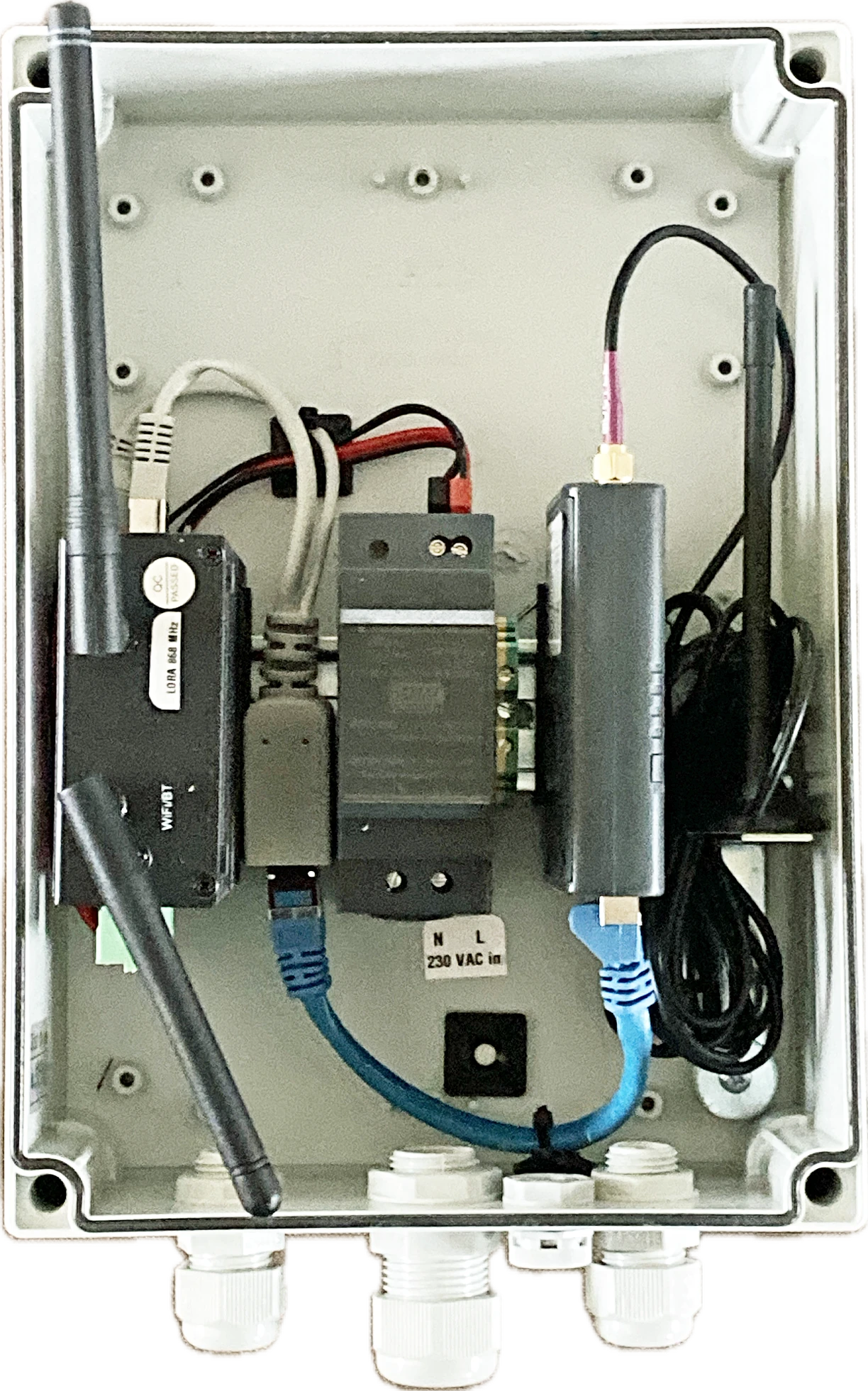

Open permanent enclosure with M4 on the left, power supply in the middle and cellular router on the right — Permanent M4 enclosure · Configuration shown

1
M4 gateway
Sensor connections, local storage and software.
2
Power supply
Matched to the assembly and site supply.
3
Cellular router
Optional network access, shown in this configuration.

Plan a fixed installation

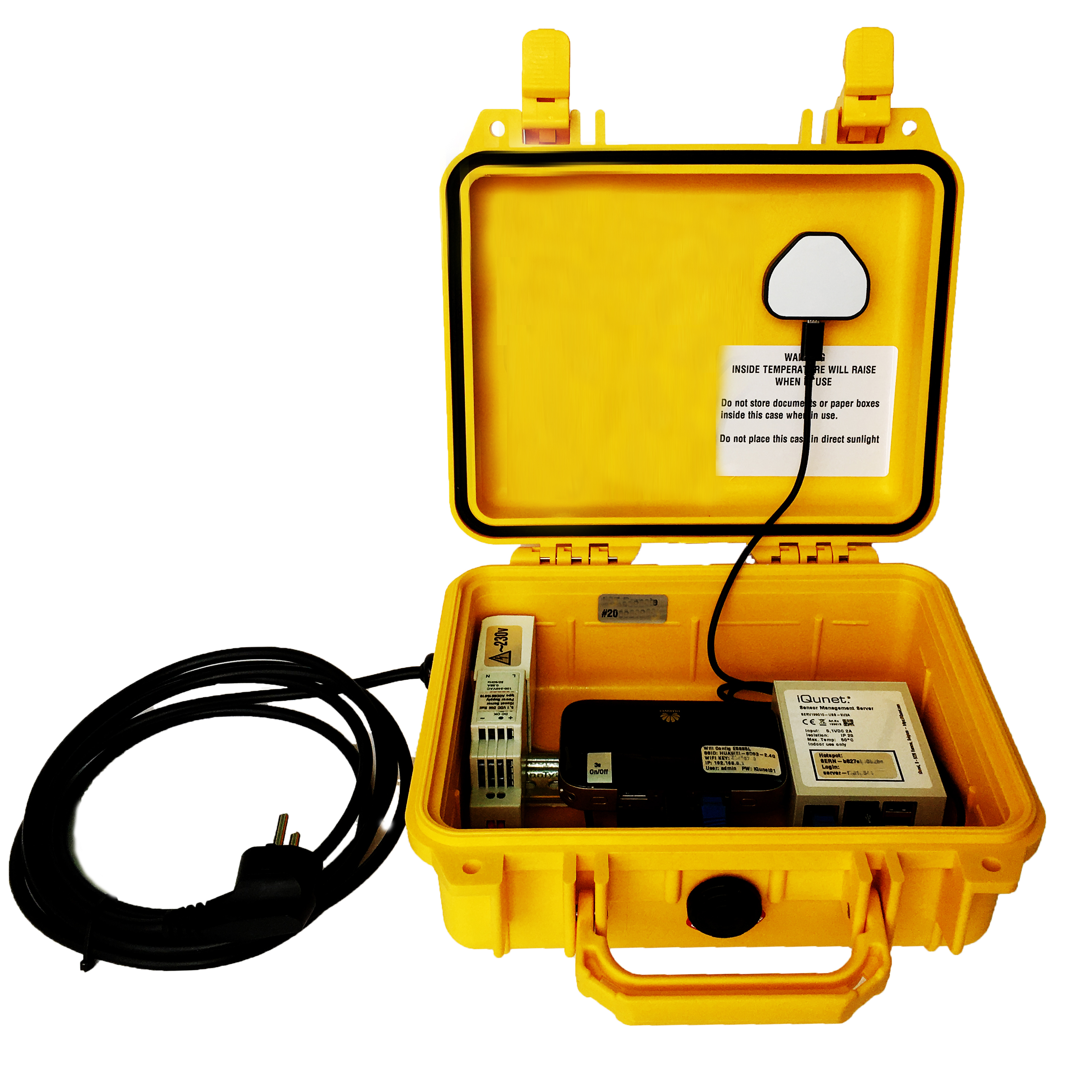

Portable monitoring

Move the gateway and its power connections together. Connect the selected sensors at each location.

Illustrative portable arrangement · Equipment specified for your application.

Specify it around the measurement

Choose the sensor interfaces, country-specific power cord, radio region and network access. Include Modbus or cellular equipment when the task requires it.

Allow for heat buildup during operation. Keep the case out of direct sunlight and keep documents and paper boxes out of the case.

Plan a portable setup

Field connections: Specify the wired sensor, Modbus and radio interfaces. Review isolation and any sensor-power output required for the selected devices.
Network access: Choose Ethernet or an appropriate cellular option. Confirm antenna placement and site coverage.
Power & environment: Match the input supply and connected load. Allow room for wiring, service access and heat dissipation.

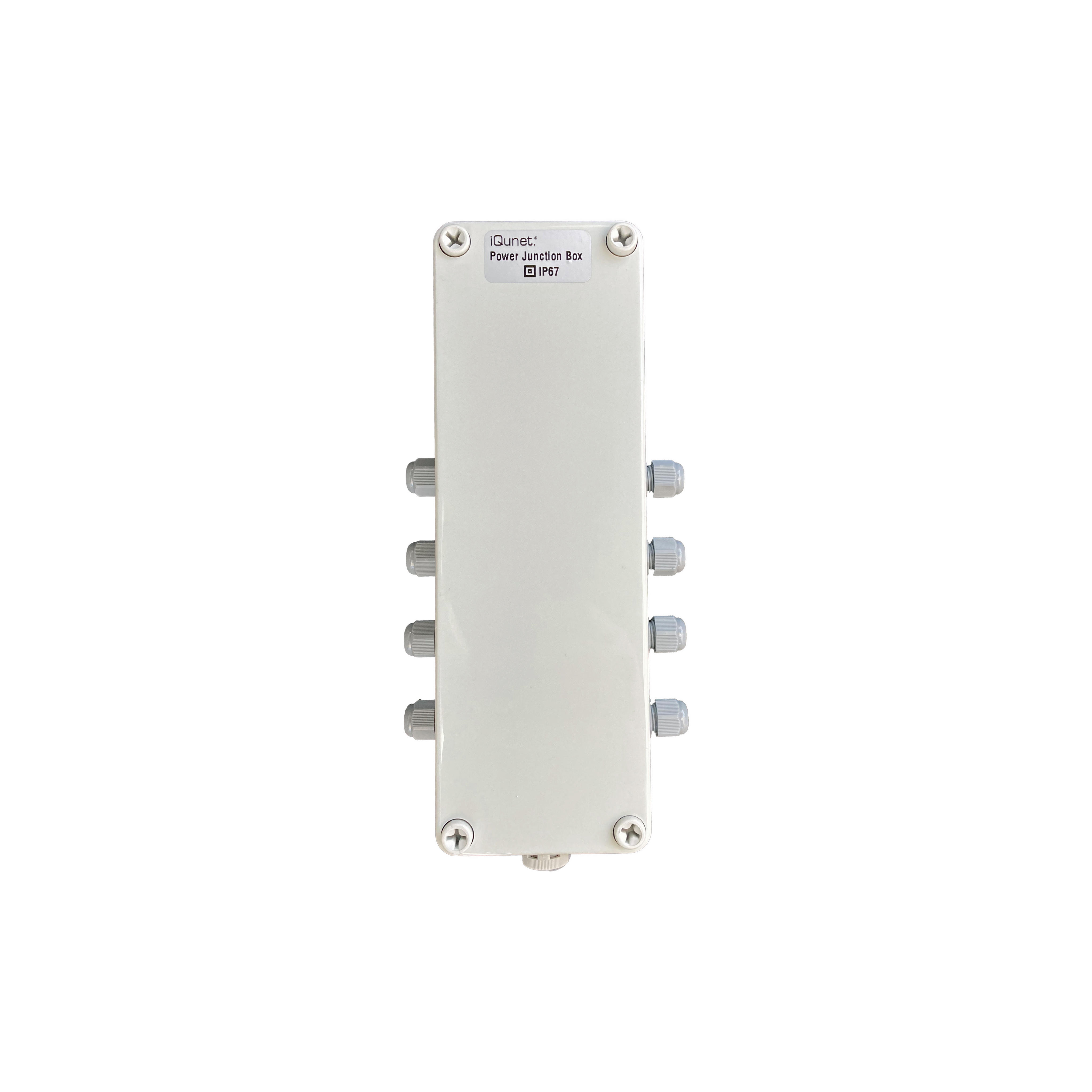

Distribute sensor power

The IP67 junction box provides a built-in 24 V supply and terminals for up to eight IVIB161410 cable-powered vibration sensors.

Maintain an existing assembly

Find the matching Base Station, repeater, earlier-server enclosure or portable MiFi case by its model reference.

Identify an earlier server

Selection & installation notes

IP67 Base Station box

Mounting enclosure for the original Base Station, with a 5 m USB extension and pre-mounted cable gland.

Base Station not included. The mounting arrangement positions it away from the rear surface for radio reception.

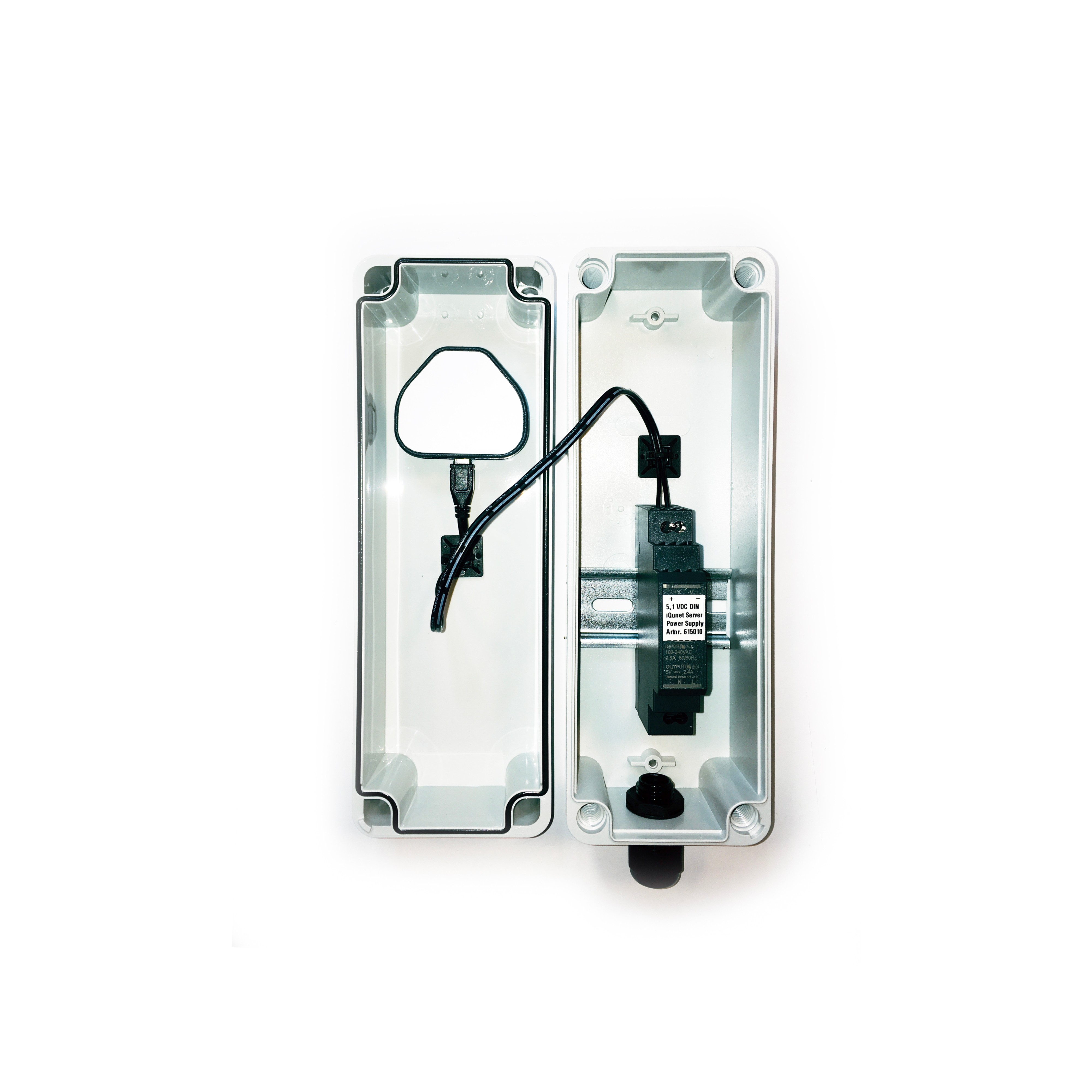

IP67 repeater box, AC input

A preassembled enclosure with an AC-to-5.1 V supply and mounting provisions for the original repeater.

Repeater not included. Keep the mounting arrangement and wiring matched to the exact enclosure.

IP67 repeater box, DC input

A preassembled enclosure with a 9–36 V DC-to-5.1 V converter and mounting provisions for the original repeater.

Repeater not included. This DC-input version differs from the AC-input box.

IP67 sensor power junction box

A terminal distribution box with a built-in 24 V supply, described for connecting up to eight IVIB161410 cable-powered vibration sensors.

ACCS617400-JUN8-IN000 includes the ACCS615410 supply. Confirm the exact sensor models and connected load.

IP68 FR201 server enclosure

Preassembled box with the SERV199310-IPC-FR201 server and a 230 V-to-24 V supply.

ACCS617020-BOX-FR201+230 is a documented FR201 assembly. Do not assume it contains or fits an M4.

IP67 24 V server enclosure

Preassembled box containing the SERV199210-IND-24V1A server for a DC-powered installation.

ACCS617010-BOX-SERV24 is a previous-generation assembly with additional cable glands.

IP67 24 V server enclosure with AC supply

Preassembled SERV199210 server enclosure with an AC-to-24 V supply.

ACCS617011-BOX-SERV24+230 differs from the DC-only assembly.

IP67 5 V server enclosure

Preassembled box containing the SERV199010-USB-5V2A server and its DIN-rail power supply.

A previous-generation server assembly. Identify the installed model when requesting a replacement or upgrade.

Portable server and MiFi case

The IKIT801010-WIF-LTE case combines an original iQunet server, a 4G MiFi router with Ethernet and battery backup. It provides a portable setup for temporary measurements or locations without an available internet connection.

The kit includes the prewired server, router and 230 V mains connection. Internal and external USB ports connect a separately supplied Base Station. The Base Station, SIM card and communication charges are not included. Use the original kit documentation when maintaining an existing case.

Model references & specifications9 models

Choose a model to include in your quotation. Prices apply to the listed item or set, excluding VAT and shipping.

Enclosures and portable systems: model references and selection details
Model	Selection details
Original Base Station boxACCS616810-BOX-BS	Included Internal mounting clip, one M16 gland and the 5 m shielded USB extension ACCS616010-USB-5MTR. Base Station is not included. Installation 170 × 80 × 85 mm; positions the Base Station 8 cm from the rear surface. Original IP67 assembly, −20°C to +70°C. Installation guide
AC-input repeater boxACCS616610-BOX-RPT	Included 85–264 V AC to 5.1 V / 2.4 A supply, assembled micro-USB cable, mounting clip and one M16 gland. Repeater and external mains cable are not included. Installation 230 × 80 × 85 mm; 8 cm repeater offset from the rear surface. Original IP67 assembly, −20°C to +70°C. Installation guide
DC-input repeater boxACCS616615-BOXS-RPT	Included 9–36 V DC to 5.1 V / 3 A converter, assembled micro-USB cable, mounting clip and one M16 gland. Repeater and external power cable are not included. Installation Halogen-free box and glands, 230 × 80 × 85 mm, with 8 cm repeater offset. Original IP67 assembly, −20°C to +70°C. Installation guide
Eight-sensor power junction boxACCS617400-JUN8-IN000	Included Wired terminal block and ACCS615410-230v-24V06A supply, for up to eight IVIB161410-24V-PWR sensors. Connections One M16 supply gland and eight M12 sensor glands, with locknuts and washers. External mains and sensor cables are not included. Installation 110–230 V AC input; 230 × 80 × 85 mm. Original IP67 assembly, −20°C to +70°C. €331.34
5 V server boxACCS616910-BOX-SERV5	Included Original SERV199010-USB-5V2A server and ACCS615010 AC-input power supply. Base Station, external LAN and mains cables, and external Base Station extension are separate. Installation Three cable glands; 230 × 140 × 125 mm. Closed-box operating range 0°C to +35°C, away from direct sunlight. Cable entries Three pre-mounted glands: M16 for the optional Base Station extension, M16 for power and M20 for Ethernet. These external cables and the Base Station are not included. Documented software Preinstalled Monitoring Software, OPC UA, web and GraphQL servers; the anomaly monitor excludes trained models. Installation guide
24 V server box, DC inputACCS617010-BOX-SERV24	Included Original SERV199210-IND-24V1A server with 9–24 V DC input. No AC transformer or Base Station is included. Installation 230 × 140 × 125 mm. Three cable glands; external Base Station placement is recommended. Closed-box operating range 0°C to +35°C, away from direct sunlight. Cable entries Three pre-mounted glands: M16 for the optional Base Station extension, M16 for power and M20 for Ethernet. These external cables and the Base Station are not included. Documented software Preinstalled Monitoring Software, OPC UA, web and GraphQL servers; the anomaly monitor excludes trained models. Installation guide
24 V server box with AC supplyACCS617011-BOX-SERV24+230	Included Original SERV199210-IND-24V1A server and ACCS615310 supply. Base Station is not included. Power 9–24 V DC at the server or 85–264 V AC through the included transformer. Installation 230 × 140 × 125 mm. Use the documented cable-gland arrangement with non-armoured cable. Closed-box operating range 0°C to +35°C, away from direct sunlight. Cable entries Three pre-mounted glands: M16 for the optional Base Station extension, M16 for power and M20 for Ethernet. These external cables and the Base Station are not included. Documented software Preinstalled Monitoring Software, OPC UA, web and GraphQL servers; the anomaly monitor excludes trained models. Installation guide
FR201 server box with AC supplyACCS617020-BOX-FR201+230	Included Original SERV199310-IPC-FR201 server and ACCS615310 supply. This is not an M4 assembly. Power 8–24 V DC at the server or 85–264 V AC through the included transformer. Installation 255 × 180 × 150 mm, original IP68 assembly. Closed-box operating range 0°C to +35°C, away from direct sunlight. Cable entries Three pre-mounted glands: M16 for the optional Base Station extension, M16 for power and M20 for Ethernet. These external cables and the Base Station are not included. Documented software Preinstalled monitoring and analytics software, OPC UA, web and GraphQL servers, with Hamachi and WireGuard VPN. AI anomaly detection is optional. Installation guide €1,494.34
Portable server and MiFi caseIKIT801010-WIF-LTE	Included Original pre-cabled iQunet server, 4G MiFi router with Ethernet, 230 V mains connector and battery backup. Connections One internal and one external USB port for the Base Station. Datasheet D1036 excludes the Base Station, SIM card and communication costs. Use Temporary measurements or mobile installations before permanent Ethernet is available. This is an earlier server kit, not an M4 package. Documented software Preinstalled iQunet Monitoring Software, OPC UA server, webserver and GraphQL server, with licences included in the original kit. Datasheet

Compatibility details

iQunet wireless and LoRaWAN

The original USB Base Station supports iQunet sensors only. The PAN Coordinator is the replacement for new projects using iQunet wireless and LoRaWAN. Match regional radio versions across the installation.

Wireless Sensor Bridge power

The documented bridge uses 24 V DC. Its 5.1 V micro-USB option is restricted to IEPE vibration or compatible current-clamp configurations. The internal backup coin cell supports diagnostic ping only; it does not keep the repeater operating.

Server generations

Older GEN3, GEN4 and FR201 accessories remain useful for identifying existing systems. They are not automatically M4 accessories. Check the model and supply before replacing hardware.

Request a quotation

Components & accessories

Select a component or describe the equipment you want to connect. We can help identify a compatible configuration.

Browse component families Identify an existing server

ComponentEquipment or application (optional)

Your setupQuantity

Price on requestAvailability confirmed with your quotation
