Current Clamp AD Module
One current channel. Configured from your browser.
From the clamp to a recorded waveform

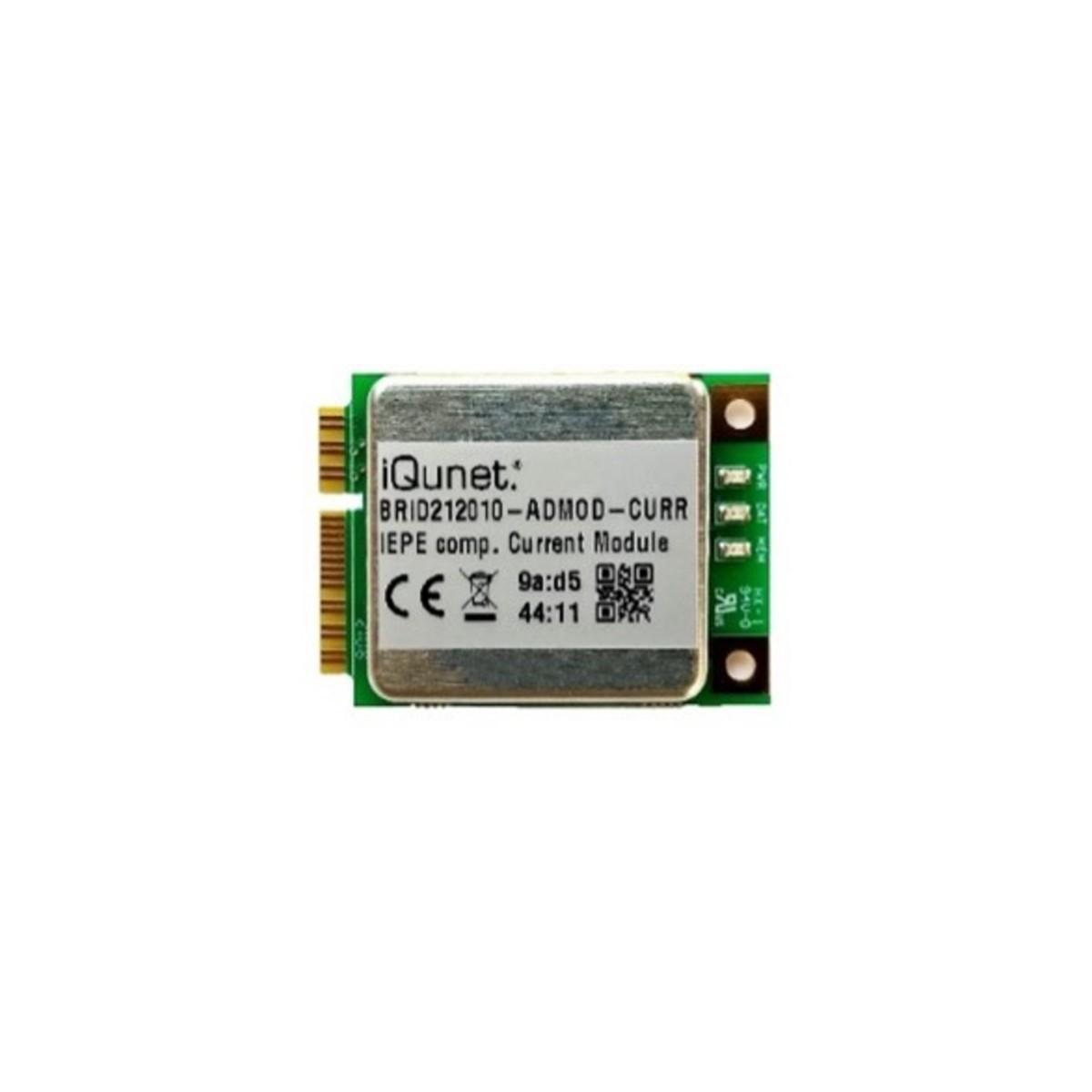

Fit the Current Clamp AD Module inside the Wireless Sensor Bridge to power and digitise one compatible iQunet current clamp. Set the recording interval, sample count and acquisition settings from the M4 dashboard.
- Input
- One iQunet current clamp
- Recording
- 32–8,192 samples per channel
- Bridge capacity
- Up to three independent AD modules
Read the current signature

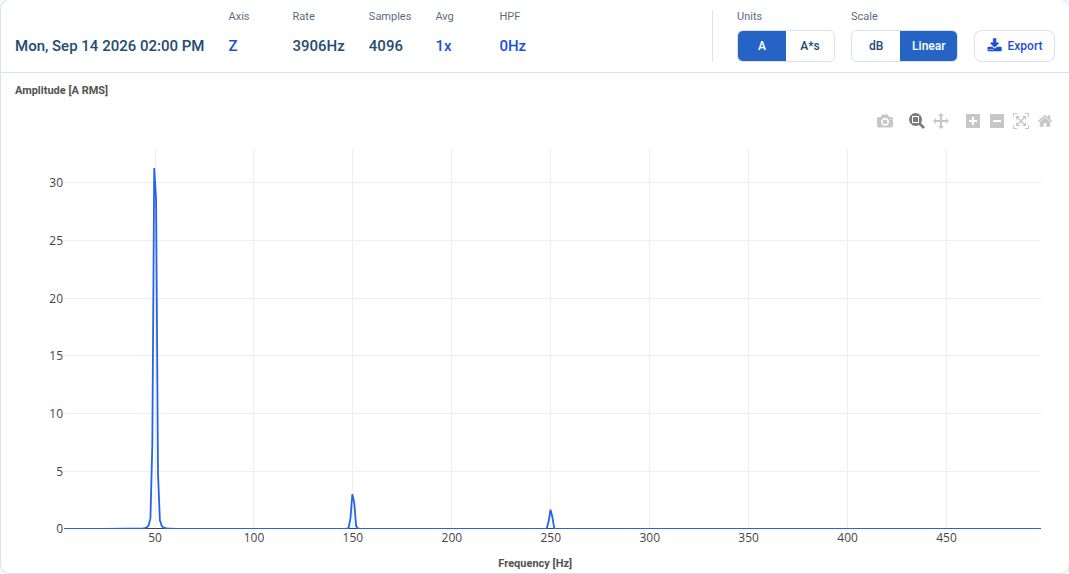

The example shows a 50 Hz current signal and its harmonics, from 4,096 samples recorded at 3,906 samples/s. Inspect the frequency components on the M4 and export the waveform for further analysis.
The bridge accepts up to three modules. Each records with its own acquisition clock; channels are not phase-synchronised.
Connect through the Wireless Sensor Bridge
The sensor connects by cable to its AD module inside the bridge. The bridge transfers recorded measurements to an M4 with a compatible iQunet radio interface.
Bridge, power & cable optionsAlready using a variable-speed drive?
Drive operating values add useful context. Dedicated clamp acquisition provides the detailed current waveform for spectrum analysis.
Explore drive measurementsTechnical details
Measurement specs
Product documents
DatasheetRequest a quotation
Current Clamp AD Module
Tell us which clamp and bridge you use, or ask for a complete current-measurement setup.
