Power quality in industrial compressors
A field example combining three-phase power measurements with detailed current waveforms.
Published . Hardware, software screens and examples reflect the original installation.
Introduction
This tutorial covers the practical application of power and current monitoring sensors to track the power quality of industrial compressors. We demonstrate which parameters are crucial, such as the cosine φ (displacement power factor) and the impact of harmonic distortion, providing a detailed insight into these power quality metrics.
The ultimate goal is to predict potential failures, such as overheating, and offer a gateway to the optimization of industrial equipment.
Technical Background and Problem
Industrial compressors, especially high-power models like the 3-phase 200kW compressor used in this case study, can cause power quality issues such as harmonic distortion.

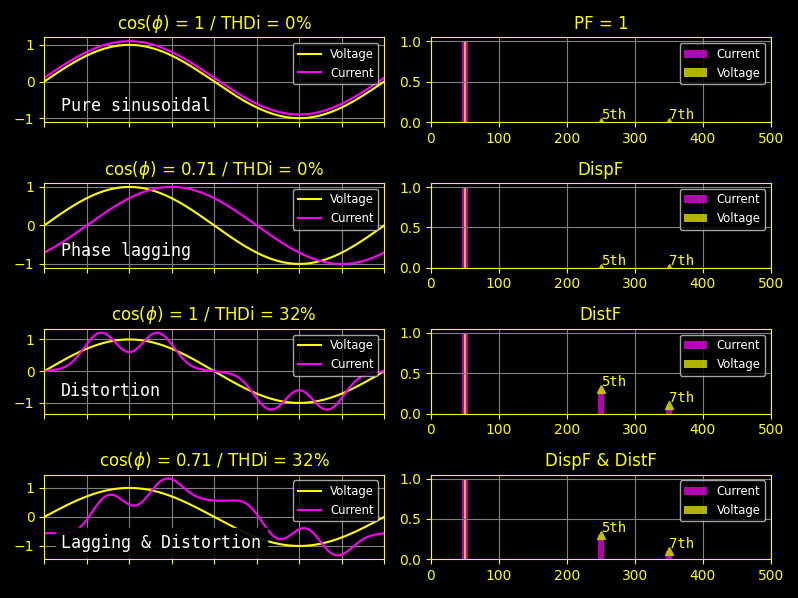

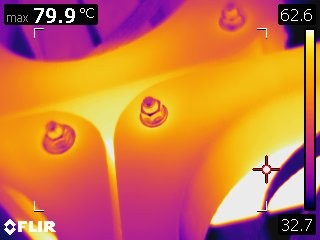

In the upstream transformer cabin, the presence of higher-order frequencies increases core losses due to eddy currents, resulting in elevated transformer temperatures. Special K-factor transformers are used to withstand these heating problems, but the heat losses persist.
Additionally, other equipment connected to the same power grid, such as small electronic equipment power supplies or capacitor banks, may experience a higher failure rate due to the stresses induced by the unexpected harmonic currents oscillating between the 200kW compressor and the passive components in their power supplies.
Sensor Deployment and Capabilities
One of our clients asked to install a power quality monitoring system at the entry point of one of their compressor rooms. The goal of this monitoring system is to gain insight in both the cumulative energy consumption and also the possible infrastructure improvements learned from the captured sensor data.
For this, two sensors were deployed on the compressor room electrical supply, each with their specific focus:

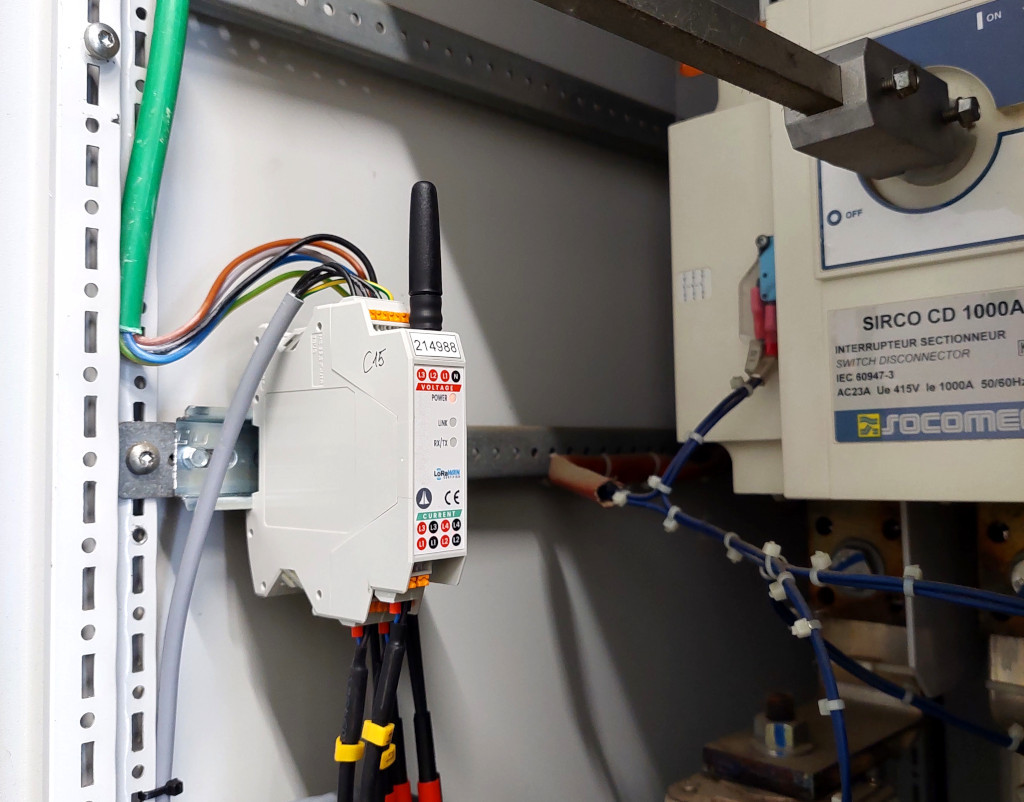

iQunet GridMate AG1 Power Quality Monitor: This LoRaWAN-enabled sensor reports ten-minute summaries of voltage, current, power factor, power and energy for all three phases. These readings provide the long-term energy and power-factor history; the separate current-waveform sensor provides the harmonic spectrum.

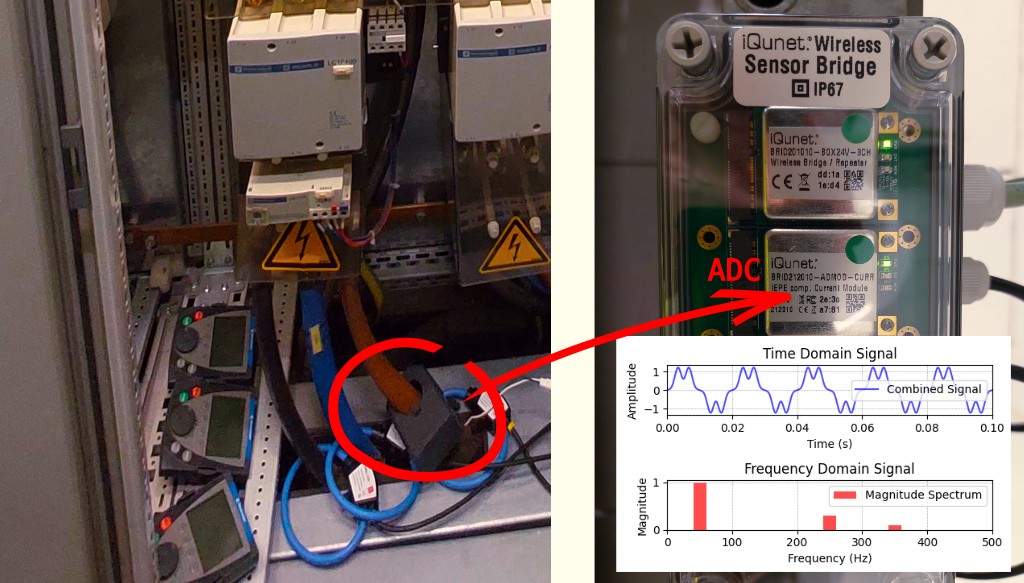

Wireless Current Waveform Sensor: Positioned on one of the phases, this sensor captures high-speed snapshots (4kS/s) of the current waveform and its spectrum every 10 minutes. It delivers detailed insights into the time-domain and frequency spectrum and helps to identify the various sources of distortion and intermittent spike events (such as the upstart of the compressor).
The combination of these sensors allows for not only real-time analytics but also provides the historical data necessary for the early detection of potential faults. In the next chapter, the following sections examine this in more detail.
Initial Findings
The original dashboard analysis reported approximately D = 3 × 20 kVArd of distortion power alongside 170 kW of active power. The reported displacement power factor was around 0.98 while the true power factor was below 0.9. These archived results motivated a closer look at the current waveform and its spectrum.

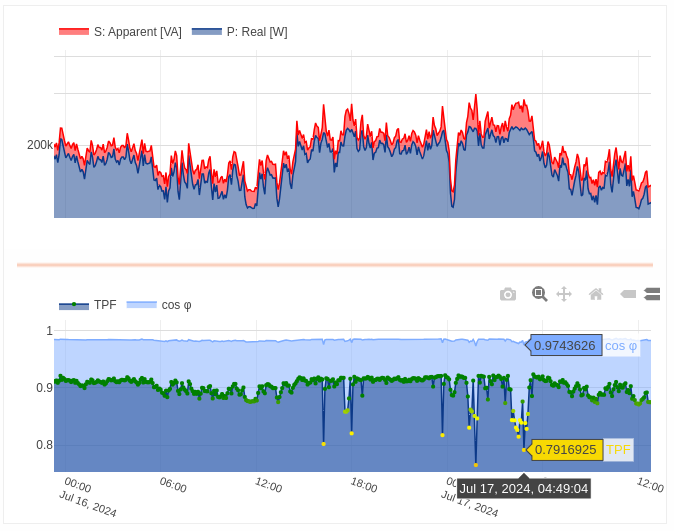

figure 5: Power phasor as shown in the dashboard of the iQunet edge server.
Waveform Analysis and Root Cause

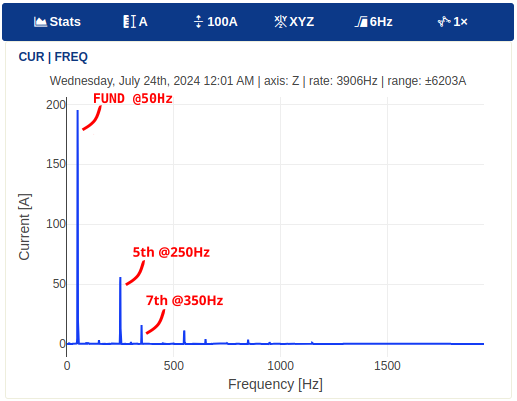

The current waveform sensor (ADMOD-CURR) also identified high harmonic distortion as seen in the system’s spectral footprint, with significant spectral components at the 5th (250 Hz) and 7th (350 Hz) harmonics of the fundamental (50 Hz).

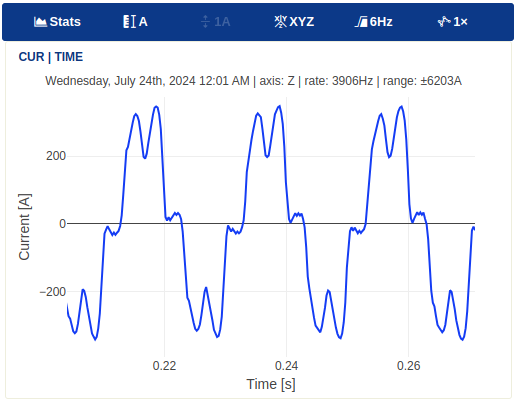

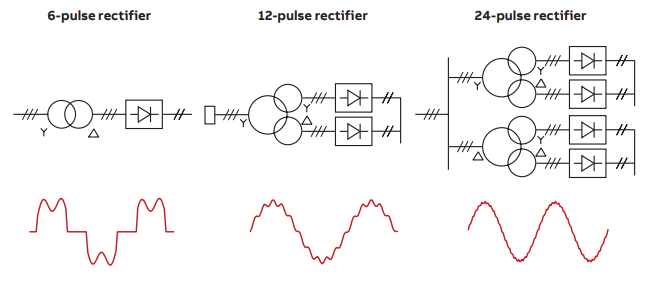

Additionally, the time-domain waveform revealed the characteristic ripple caused by a 6-pulse 3-phase rectifier at the DC-bus input stage of the compressor VFD.
In-depth Technical Audit
The 5th harmonic was notably significant, making up about 30% of the main component current in the spectrum plot. The original audit interpreted the harmonic ratios as consistent with a damping choke operating near the compressor’s nominal point. That interpretation is not an independent determination of IEEE-519 compliance.
For more details on this see the “ABB Technical Guide to harmonics with AC drives” link .
Away from the nominal operating point, the recorded distortion increased. The original author attributed this to a tuning mismatch of the damping choke. Establishing the cause and any applicable compliance conclusion requires a separate assessment of the installation.
More information on the problems of the suppression of harmonics with passive components can be found here [powerquality.blog] .
Results and Benefits
Insights
The two sensors did provide immediate, detailed insights into power consumption patterns, enabling a deeper understanding of the root causes of heat losses. The high distortion power is one of the primary issues that must be addressed.
While phase compensation or harmonics suppression with capacitor banks may offer some (marginal) improvements, there is also the very real increased risk of damage caused by unexpected resonances between multiple on-site systems.
The customer has now all the necessary information to calculate whether the cost of a more advanced VFD (e.g. with hybrid harmonic active filter) is justified to improve to the current situation. The decision process will not only involve the heat losses in the upstream transformer cabin, but also the impact of HF harmonics on the lifespan of nearby electrical and mechanical components, such as parasitic bearing currents in rotating equipment connected to the same grid.

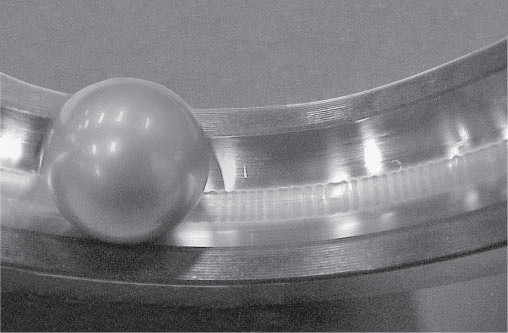

See “ABB Technical guide No. 5 - Bearing currents in modern AC drive systems” link .
Predictive Maintenance
By analyzing the current spectrum in a regular interval, the sensors also enable the early detection of changes in the electronic or mechanical behavior of the compressor. This proactive approach can significantly reduce unplanned downtime.
Machine Learning Applications

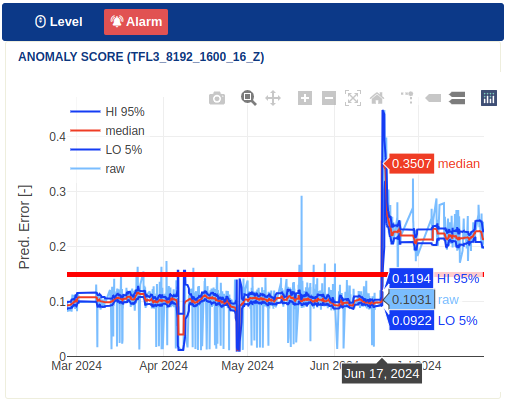

iQunet offers an optional service to automate anomaly detection. Small variations in the machine’s operating state cause related changes in the spectral footprint of electrical current or mechanical vibrations. While these changes are difficult to detect with the naked eye, a custom-trained machine learning model can provide a reliable early-warning system for critical assets, without the need for expert personnel to analyze the sensor data.
Conclusion
This case study has demonstrated the capabilities of modern sensor technology in tackling power quality issues in industrial settings.
By providing detailed measurements, the combination of the appropriate voltage and current sensors enables precise registration of energy usage, along with the identification of the root causes of energy losses due to harmonic distortion currents. For the more experienced user, it offers valuable insights into the installed equipment, down to the ability to determine the VFD characteristics of attached machinery through black-box analysis.
Finally, armed with this knowledge, the customer can take informed steps to implement future operational improvements and monitor emerging anomalies as a foundation for predictive maintenance.
For more detailed technical insights and support, explore our documentation and case studies, or contact our support team.
