Temperature & relative humidity
Integrated-probe temperature and humidity sensor.

Put environmental measurements in context

Follow temperature and relative humidity around equipment, storage areas and production spaces. Battery-powered LoRaWAN sensors send their measurements to the M4 for local trends and integration with your systems.

Probe temperature
−40 to +80 °C
Relative humidity
0–99.9% RH
Connection
LoRaWAN EU868

One housing or a separate probe

Temperature and humidity sensor with an integrated probe

Integrated probe

Mount the wireless node at the point where you want to measure temperature and humidity.

Temperature and humidity sensor with a separate cabled probe

Separate probe

Use the 3 m cable to position the probe at the measurement point and the wireless node where mounting and radio reception suit the installation.

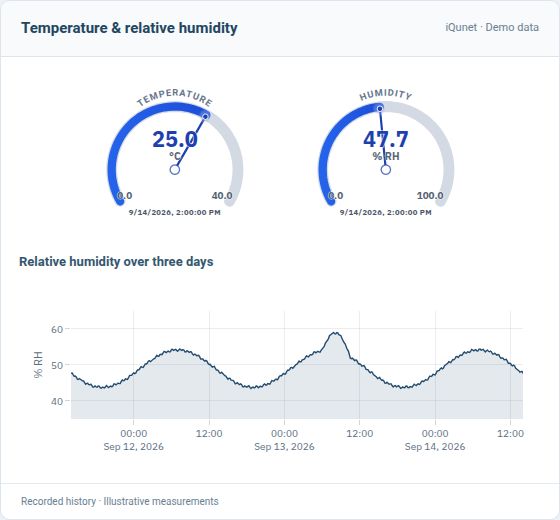

See the conditions around your equipment

Read temperature and relative humidity at a glance. Open the history to see how conditions change between shifts or over a longer period.

A compatible LoRaWAN interface receives the sensor reports. The M4 stores them locally and provides access from your browser and other systems.

Actual iQunet software · Illustrative demo data.

Temperature & humidity monitoring

Actual iQunet software · Illustrative demo data.

Swipe sideways for detail. Tap the image to close.

Technical details

Measurement specs

Product documents

Request a quotation

Temperature & relative humidity

Tell us where you want to measure and whether the probe needs to be separate from the wireless node.

Temperature & relative humidity

Price on requestAvailability confirmed with your quotation

Temperature & relative humidity

Technical details

Measurement specifications

EU868 model details

Models
LORA281110-TH-S31LB-EU868: 3 m cabled probe. LORA281111-TH-S31BLB-EU868: integrated probe.
Probe range
Temperature: −40°C to +80°C. Relative humidity: 0–99.9% RH.
Battery
Replaceable, non-rechargeable 8,500 mAh lithium thionyl chloride battery.
Mounting
Three node mounting feet with 5 mm holes. Integrated model: 123 × 65 × 47 mm. Cabled node: 115 × 65 × 47 mm. Dimensions exclude antenna and mounting feet.

Connection & mounting

Private LoRaWAN and local data storage

Connect the supported sensor through the matching LoRaWAN interface. The edge server stores its decoded measurements locally and makes them available through OPC UA, MQTT and GraphQL.

Choose the integrated probe for a shared measurement and mounting point, or use the 3 m cabled probe to position the wireless node separately. The documented models use LoRaWAN EU868.

Compatible components

Datasheets & installation

PDFTemperature & humidity, cabled probePDFTemperature & humidity, integrated probe
