Hall-effect proximity sensor

Magnetic-field measurement for position monitoring.

Follow changes in a component’s position

Measure a nearby magnet’s field to track movement relative to the sensor. Use the readings to follow conveyor alignment or displacement, with the magnet and mounting geometry calibrated for your installation.

Measurement: Hall magnetic-field reading
Additional data: Temperature + battery voltage
Connection: iQunet wireless

How it works Technical details

A fixed sensor. A moving magnet.

Moving magnet

Fixed sensor

Calibrate the position you want to follow

Magnet strength, distance and orientation determine the measured field. Establish the relationship between field and position in the mounted setup, then follow changes over time.

Wireless measurements. Local history.

The sensor sends measurements to the M4 through a compatible iQunet radio interface. Review the history in your browser and connect the recorded values to your existing systems.

Explore the M4 connections

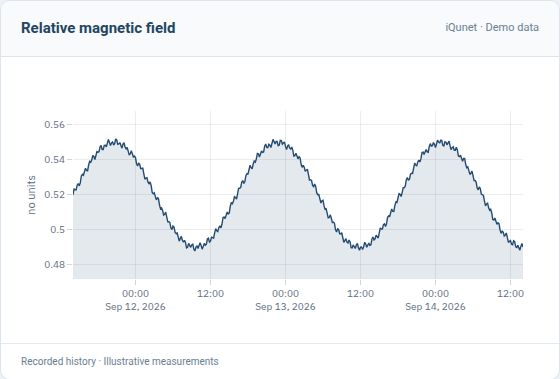

iQunet history of relative magnetic-field changes — Relative magnetic-field history · Example readings.

Technical details

Measurement specs

Product documents

Datasheet

System components

Edge Gateway M4 Monitoring & analysis

Request a quotation

Hall-effect proximity sensor

Describe the movement and available mounting space. We’ll help match the magnet, geometry and sensor configuration.

Measurement specifications

IMAG163110-HALL-LIN details

Measurement: Relative magnetic-field readings, Hall voltage for calibration, temperature and battery voltage.
Installation: Two CR2032 cells; 57 × 47 × 14 mm, 35 g; −20°C to +70°C. IP65, or IP68 with the specified upgrade set.
Interpretation: Hall readings depend on magnet strength, orientation and distance. Calibrate the installed magnet and geometry to relate them to displacement.

Connection & mounting

iQunet wireless network

Position measurements travel to an M4 with a compatible iQunet radio interface, directly or through an optional Repeater. Use the dashboard to follow measurements and adjust sensor settings.

Keep the magnet and mounting geometry consistent to follow displacement trends. Calibrate that arrangement when a distance value is required.

Compatible components

Datasheets & installation

Hall-effect proximity sensor datasheetMagnetic sensor element positionsBattery replacement instructions
