Edge Gateway M4

Sensor data and local history. AI reporting.

Request a quotation

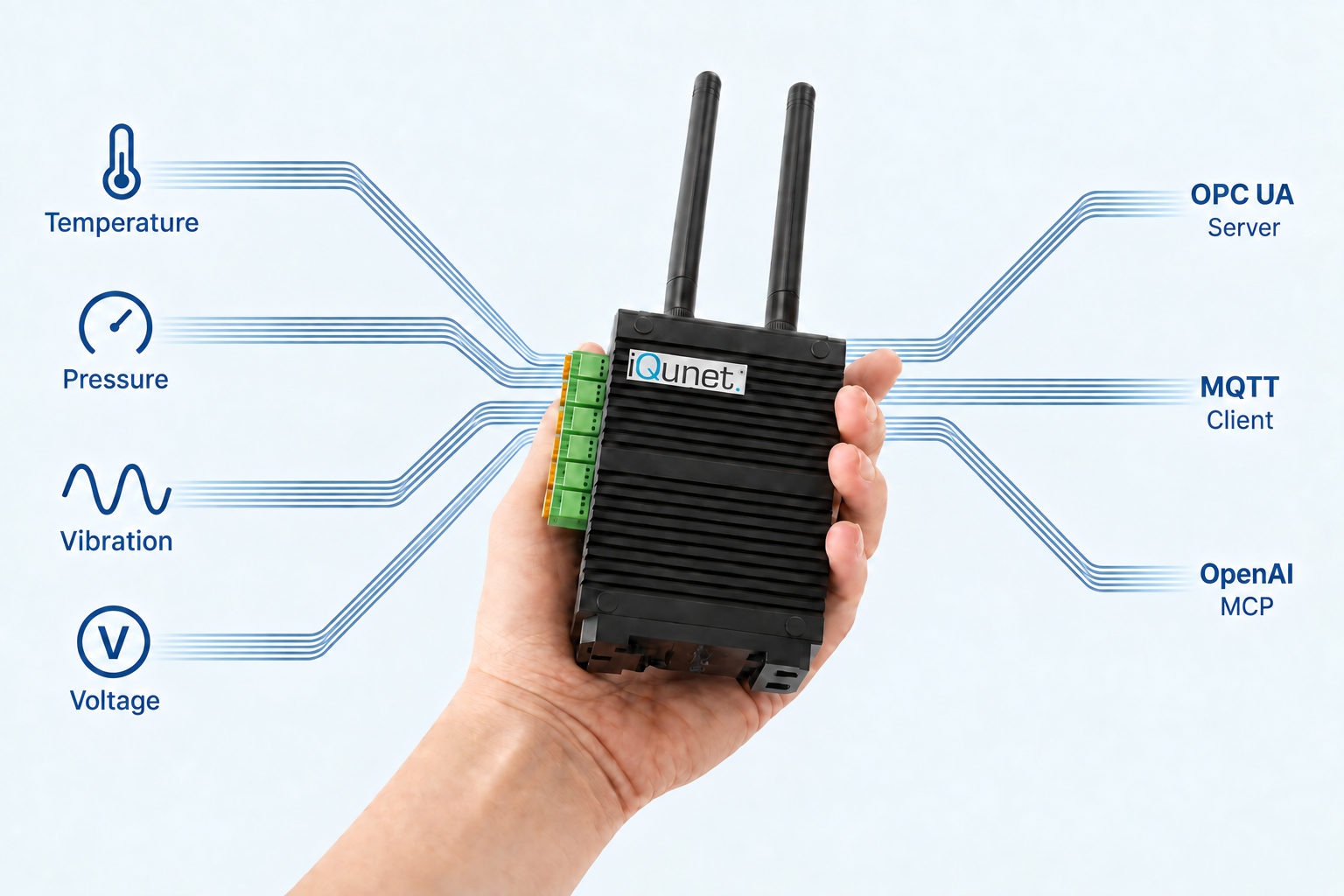

Temperature, pressure, vibration and voltage measurements flow through compatible interfaces into the hand-held M4 gateway; data flows out through its OPC UA server, MQTT client and OpenAI MCP connection.

Many sensor inputs. One local database.

An industrial edge gateway for sensor acquisition, local storage and browser analysis. Connect through OPC UA and MQTT. Operate offline, or go online for remote access and OpenAI MCP.

Sensor inputs
Modbus RTU/TCP · analog · wireless
Local database
Measurement history · 32 GB eMMC storage
Local interfaces
OPC UA · GraphQL APIs · MQTT
AI connection
OpenAI MCP · ChatGPT & Codex
Software updates from iQunet. Add new functions and sensor support through the OTA update service.

Two ways to use the same local data

The database stays on the M4 in both modes.

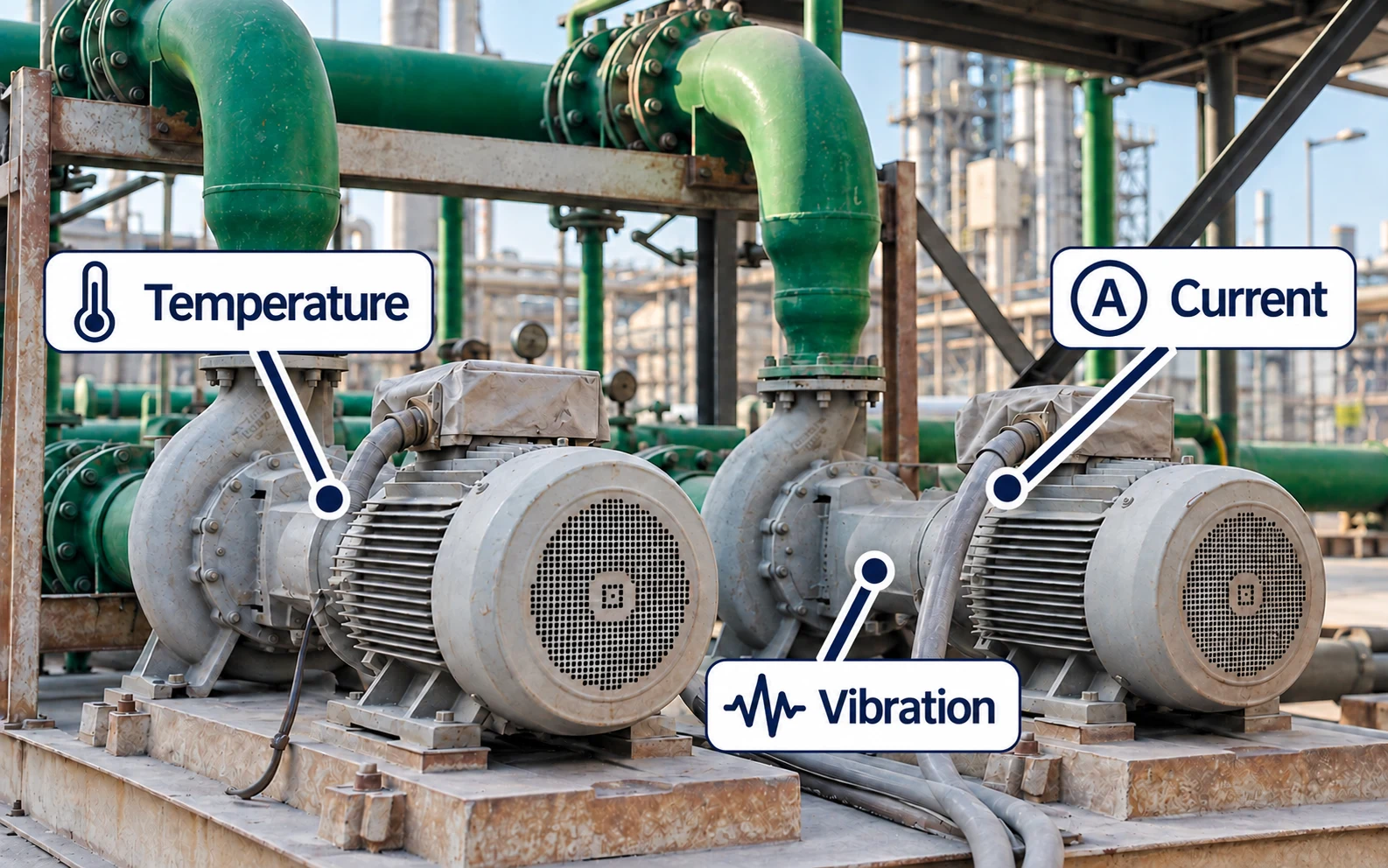

Illustration of industrial motor-pump equipment with temperature, vibration and motor-current monitoring callouts.
Local measurement database
PATH 1 · NO INTERNET

Standalone / air-gapped

Local dashboards and APIs

Query current values and history through OPC UA or GraphQL. Publish through MQTT. Use the browser dashboard on your isolated network.

Everything stays within your installation.
PATH 2 · INTERNET CONNECTED

Online / AI connected

OpenAI MCP → ChatGPT & Codex

Your AI workspace connects directly to the M4 for analysis and reporting, without an iQunet intermediary. Remote browser access uses iQunet Connect.

See an example report request

Ask for a weekly report from your measurements OpenAI

Ask in ChatGPT or Codex. The AI reads M4 data through MCP and returns your report.

You ask
Which motors show new spectral components or increased peak amplitudes compared with last week? Compare spectra at similar operating conditions and report the frequencies and amplitude changes.
Example AI response

The shaft-speed component near 25 Hz is about 5.7× its previous amplitude.

Possible cause: rotor imbalance. Phase and directional measurements would help confirm the cause.

Recorded vibration spectra with added modelled ADXL380 noise: Week x above, Week x+1 below, on matching scales.

MCP access is read-only. Requested measurements are shared with your AI workspace.

Connection & setup
SOFTWARE UPDATES

New capabilities after installation

iQunet adds new functions and sensor support through its over-the-air (OTA) update service.

Request a software update
Installing at the machine or moving between sites? Choose a permanent enclosure or portable measurement setup.M4 installation options

Technical details

Edge Gateway M4

Technical details

Datasheet & installation guide

Hardware specifications, wiring and commissioning.

M4 software manualPDFM4 datasheetPDFQuick start guide
01 / CONNECTIONS

Sensor inputs and system interfaces

FROM YOUR EQUIPMENT

Modbus equipment

Read Modbus RTU devices over RS-485 and Modbus TCP devices over Ethernet, including compatible PLCs and sensors.

Analog sensors

Read 4⁠–⁠20 mA and 0⁠–⁠10 V signals through compatible analog input modules.

Wireless sensors

Private LoRaWAN network and application servers run on the M4. iQunet vibration and motor-current sensors communicate over a private iQunet wireless network.

TO YOUR EXISTING SYSTEMS

Interfaces to your systems

OPC UA server, MQTT client and GraphQL APIs for SCADA, MES, historians and custom applications.

  • OPC UA
  • MQTT
  • GraphQL
Monitoring software

Contact iQunet with your device model, signal type or Modbus register map. We will confirm compatibility and the required interface modules. Implementation times are short.

02 / SOFTWARE

Configuration, monitoring and data access

Browser-based software, included with the M4.

Sensor configuration

Set sensor parameters and alerts in your browser. A built-in Wi-Fi hotspot supports initial configuration.

Dashboards

Build dashboards by dragging charts, gauges and KPIs into place. View measurements from a browser on your local network.

History & export

Review time-series measurements stored on the gateway and export CSV files. Google Sheets reporting is available when connected online.

Updates & device support

Software updates add support for new devices. Additional device integrations can be developed through iQunet I/O plug-ins.

Included software

  • Sensor monitoring, analytics and dashboards
  • OPC UA · MQTT · GraphQL

Available separately

AI Anomaly Detection Service
Open the M4 software manual
03 / GETTING STARTED

Package contents and support

Measurement sensors are supplied separately.

Included in the standard package

One of each

  • Edge Gateway M4

    Gateway with pre-installed software, local storage and integrated radio.

  • USB to RS-485 converter

    MODB221095-USB-2CHRS485. Two RS-485 channels with galvanic isolation, surge protection and ESD protection.

  • Analog input module

    MODB221311-8CH420MA. Eight 12-bit inputs for 0⁠–⁠10 V and 4⁠–⁠20 mA; Modbus RTU over RS-485, isolated power and signals, DIN-rail housing. Boxed option, supplied separately: MODB221310-8CH420MA-PWRBOX.

  • DIN-rail power supply

    ACCS615411-230-24V1A5. Power supply output: 24 V DC, 1.5 A, 36 W.

  • 4G LTE USB modem

    Huawei E3372-325, LTE Cat 4, USB-A, mini-SIM and HiLink management. Includes a SIM with 1 GB for setup.

  • Startup cable set

    Five leads: mains to power supply, DC to gateway, USB to RS-485 converter, RS-485 test lead to analog module, and Ethernet patch cable.

Included integration support

The standard support bundle covers one integration: up to 10 Modbus registers, eight analog signals or 10 LoRaWAN parameters. Extended device integration is available separately.

Standard supported sensors Quick-start guide PDF
04 / TECHNICAL DETAILS

Hardware and interfaces

Hardware

Processor
Quad-core ARM Cortex-A72, 64-bit, 1.5 GHz
Memory & storage
4 GB RAM; 32 GB eMMC storage
Ethernet
One 10/100/1000 Mb/s RJ45 port
Wi-Fi
2.4 GHz and 5 GHz; external dual-band antenna
USB
Two USB-A ports
Installation
35 mm DIN rail; indoor use, IP20
Enclosure
Fanless; 102 × 73 × 36 mm, excluding antennas and DIN-rail bracket
Weight
500 g
Operating temperature
−20°C to +60°C

Interfaces & software

Wired protocols
Modbus RTU (RS-485) and Modbus TCP (Ethernet)
Wireless
Private LoRaWAN and private iQunet wireless networks
Data interfaces
OPC UA server, MQTT client, GraphQL APIs
Reporting
Browser dashboards, CSV export and Google Sheets
AI integration
OpenAI MCP · direct connection to ChatGPT and Codex
Read the full datasheet PDF
05 / DOCUMENTS

Manual, datasheet & quick-start guide

M4 software manualSoftware 1.16.4. Interactive dashboard tutorials.PDFM4 datasheetHardware specifications, connections and operating limits.PDFQuick start guideInstallation and the first steps with your gateway.
QUOTATION

Request a quotation

Choose a package and quantity. We can advise on the radio region.

Edge Gateway M4

Gateway, pre-installed software and the standard interface package.

  • Confirm compatible sensors and interfaces
  • Specify power, cabling and connectivity
  • Get pricing and availability for your setup

Additional sensors, extra accessories and optional services are quoted separately.

€1,699 per gatewayExcludes VAT, transport and insurance.Local software included, no subscription.Optional embedded AI quoted separately.

Standard gateway package

One of each component. Measurement sensors are supplied separately.

  • Edge Gateway M4

    Gateway with pre-installed software, local storage and integrated radio.

  • USB to RS-485 converter

    MODB221095-USB-2CHRS485. Two RS-485 channels with galvanic isolation, surge protection and ESD protection.

  • Analog input module

    MODB221311-8CH420MA. Eight 12-bit inputs for 0⁠–⁠10 V and 4⁠–⁠20 mA; Modbus RTU over RS-485, isolated power and signals, DIN-rail housing. Boxed option, supplied separately: MODB221310-8CH420MA-PWRBOX.

  • DIN-rail power supply

    ACCS615411-230-24V1A5. Power supply output: 24 V DC, 1.5 A, 36 W.

  • 4G LTE USB modem

    Huawei E3372-325, LTE Cat 4, USB-A, mini-SIM and HiLink management. Includes a SIM with 1 GB for setup.

  • Startup cable set

    Five leads: mains to power supply, DC to gateway, USB to RS-485 converter, RS-485 test lead to analog module, and Ethernet patch cable.
